SOT23 to DIP Adapter

SparkFunSKU: PL4-BOB-00717
filler

Prix:
Prix réduit$8.99

Description

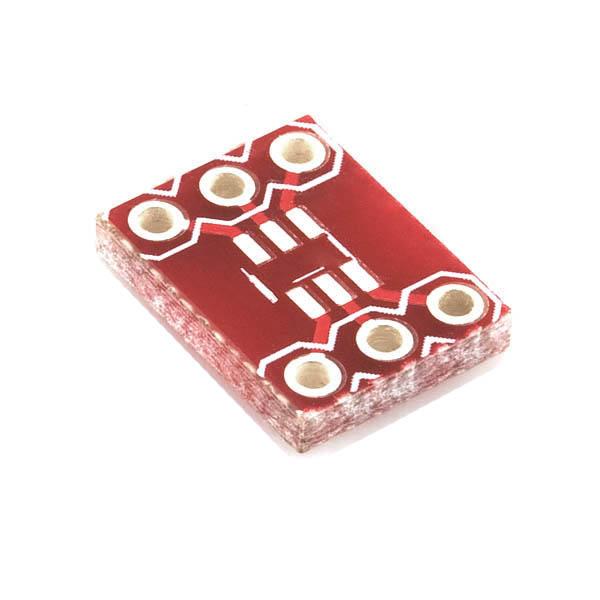

6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-5), and various other Micro6, Micro5, etc packages.

DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket. 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SOT23 packages including:

* SOT-23
* SOT-23-3
* SOT-23-6
* Micro3
* 5-MicroSMD
* All other similar SOT23 packages

**Features:**

* 0.34x0.46"

**Documents:**

* [Schematic](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_SOT23-DIP-Adapter-v10.pdf)
* [Eagle Files](https://cdn.sparkfun.com/datasheets/BreakoutBoards/SparkFun_SOT23-DIP-Adapter-v10.zip)
* [GitHub](https://github.com/sparkfun/SOT23_DIP_Adapter) (Design Files)
