USB Type A Female Breakout

SparkFunSKU: PL4-BOB-12700
filler

Prix:
Prix réduit$19.99

Description

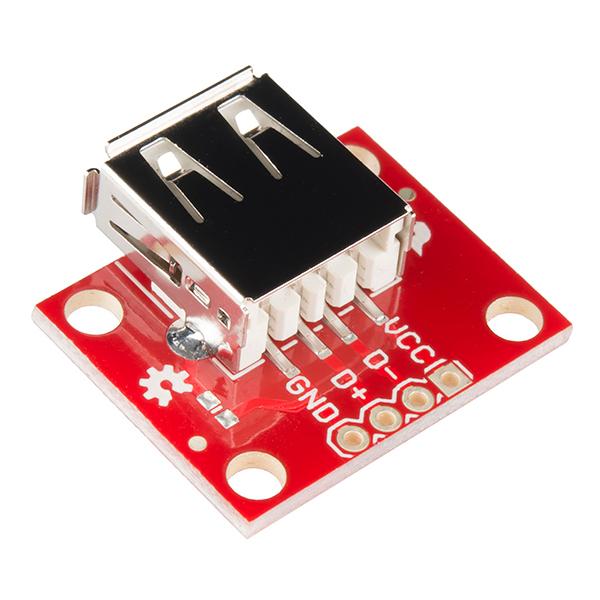

This simple board breaks out a female USB type A connector's VCC, GND, D- and D+ pins to a 0.1" pitch header. If you want to add a USB to  your project, but don't want to put up with soldering tiny [connectors](https://www.sparkfun.com/products/9011), this is the board for you.

**Dimensions: **1.02 x 0.9" (26.06 x 22.93mm)

**Documents:**

* [Schematic](http://cdn.sparkfun.com/datasheets/BreakoutBoards/USB_Type_A_Female_Breakout.pdf)
* [Eagle Files](http://cdn.sparkfun.com/datasheets/BreakoutBoards/USB_Type_A_Female_Breakout.zip)
* [Hookup Guide](https://learn.sparkfun.com/tutorials/usb-type-a-female-breakout-hookup-guide)
* [GitHub](https://github.com/sparkfun/USB_Type_A_Female_Breakout)
