USB-C Breakout

SparkFunSKU: PL4-BOB-15100
filler

Prix:
Prix réduit$20.99

Description

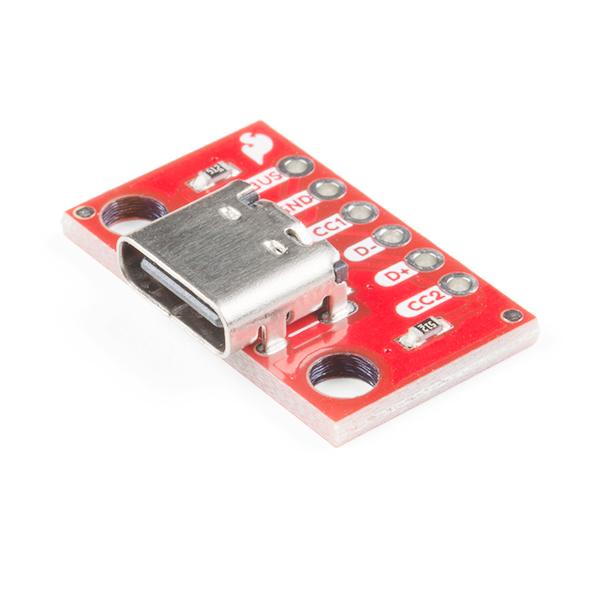

With this USB breakout you will finally be able to incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations and also solves the universally frustrating dilemma of plugging a USB cable in correctly because it's reversible!

This board breaks out the USB-C connector's VBUS, GND, CC1, CC2, D+, and D- pins intro a 0.1" pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.

**Features:**

* Dimensions: 22.1mm x 14mm x 4.9mm (0.87in x 0.55in x 0.19in)
* Weight: 1.35g

**Documents:**

* [Schematic](https://cdn.sparkfun.com/assets/6/1/7/9/8/USB-C-Breakout_Schematic.pdf)
* [Eagle Files](https://cdn.sparkfun.com/assets/0/b/7/7/b/USB-C-Breakout.zip)
* [USB Type C General datasheet](https://cdn.sparkfun.com/assets/e/b/4/f/7/USB-C_Datasheet.pdf)
* [USB Connector Datasheet](https://cdn.sparkfun.com/assets/8/6/b/4/5/A40-00119-A52-12.pdf)
* [Github](https://github.com/sparkfun/USB-C-Breakout)
