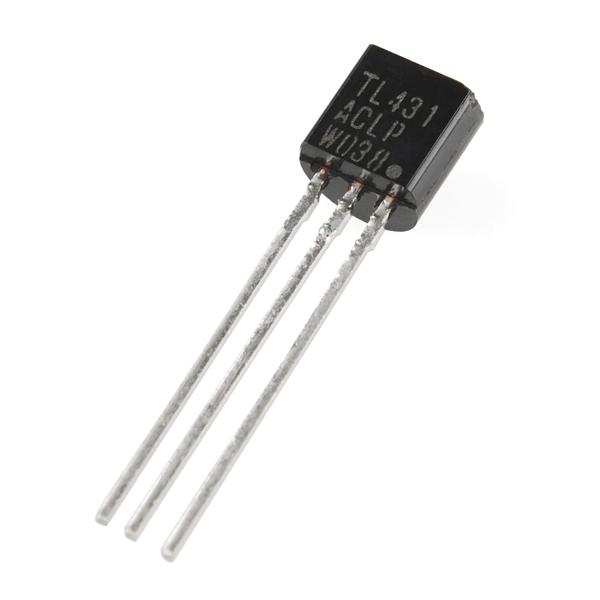

TL431 - Voltage Reference

PuriLiteSKU: PL4-COM-11078
filler

Prix:
Prix réduit$8.99

Description

The TL431 is a threeˆ’terminal programmable shunt regulator diode. This monolithic IC voltage reference operates as a low temperature coefficient zener which is programmable from Vref to 36V with two external resistors. They exhibit a wide operating current range of 1.0mA to 100mA with a typical dynamic impedance of 0.22 ohms.

The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op-amp circuitry. The 2.5V reference makes it convenient to obtain a stable reference from 5.0V logic supplies, and since the TL431 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

**Features:**

* Programmable Output Voltage to 36V
* Voltage Reference Tolerance: ±0.4%, Typ @ 25°C (TL431B)
* Low Dynamic Output Impedance, 0.22 ohms Typical
* Sink Current Capability of 1.0mA to 100mA
* Equivalent Fullˆ’Range Temperature Coefficient of 50 ppm/°C Typical
* Temperature Compensated for Operation over Full Rated Operating Temperature Range
* Low Output Noise Voltage
* Pb and Halideˆ’Free

**Documents:**

* [Datasheet](https://cdn.sparkfun.com/assets/d/7/6/0/d/TL431-D.pdf)
