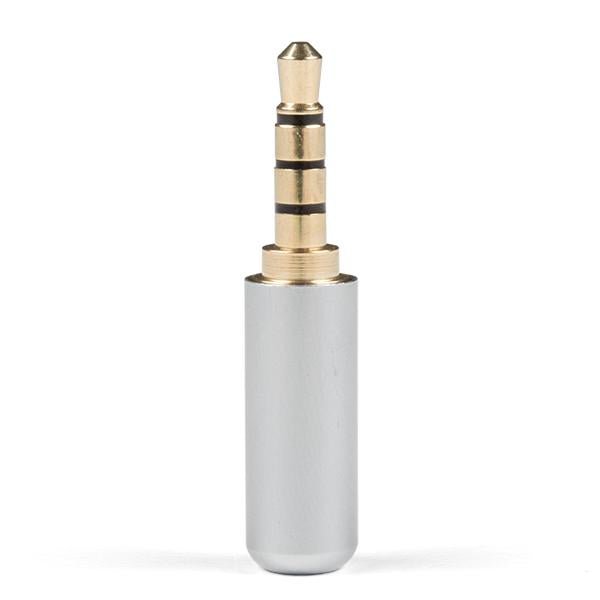

TRRS Audio Plug - 3.5mm (Metal)

PuriLiteSKU: PL4-COM-15337
filler

Prix:
Prix réduit$8.99

Description

TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards. TRRS stands for "Tip, Ring, Ring, Sleeve," which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-free headsets) or to carry a video signal (like in some MP3/MP4 players). If you're hacking on something that has a 4-conductor audio jack, being able to plug straight in will keep your build clean and simple.

**Note:** This plug allows you to add a custom length of wire to your connector or repair a broken shroud on an existing cable you just cannot live without. Unfortunately, the supplier has not provided a datasheet or dimensional drawing please see the similar documents provided by other SparkFun products on the "documents" tab.

**Includes:**

* Plug w/ solder-point connections
* Shroud to cover solder connections

**Documents:**

* Audio Cable TRRS - 18" (pigtail) - [Pinout Diagram](https://cdn.sparkfun.com/datasheets/Cables/Audio/rect3946.jpg)
* SparkFun TRRS 3.5mm Jack Breakout - [Breakout Schematic](https://cdn.sparkfun.com/datasheets/BreakoutBoards/TRRS_Breakout-v10.pdf)
