OpenMV LCD Shield

PuriLiteSKU: PL4-LCD-16777
filler

Prix:
Prix réduit$70.99
 Plus de moyens de paiement

Description

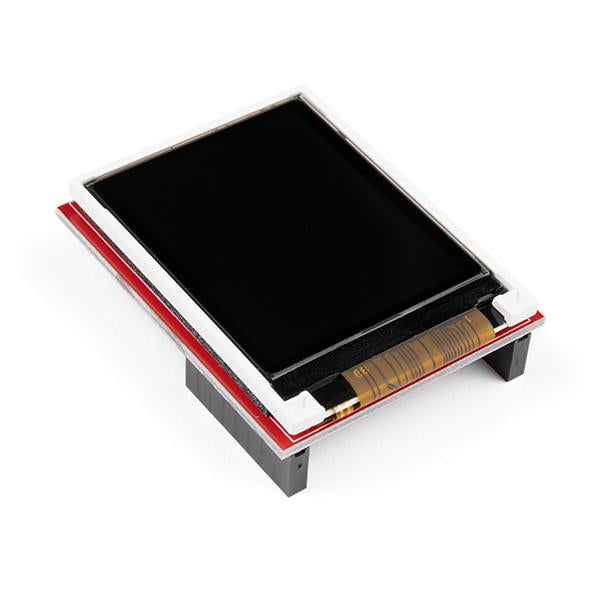

The LCD Shield gives your OpenMV Camera the ability to display what it sees on-the-go while not connected to your computer. This shield features a 1.8" 128x160 16-bpp (RGB565) TFT LCD display with a controllable backlight. Your OpenMV Cam's firmware already has built-in support for controlling the LCD Shield using the [LCD module](http://docs.openmv.io/library/omv.lcd.html).

The LCD Shield is great for robotic applications where you need to debug your OpenMV Cam in the field - like when debugging a line following robot. For example, you can use the LCD Shield to display the frame buffer after you've thresholded and drawn markups on an image.

**Features:**

* Screen Type - 1.8" TFT LCD
* Horizontal Resolution - 128 pixels (28.03mm), 0.18mm pixel pitch
* Vertical Resolution - 160 pixels (35.04mm), 0.18mm pixel pitch
* Display Colors - 64K 16-bit RGB565
* Power Consumption
* Idle Backlight Off - < 1mA @ 3.3V (> 100mA w/ Cam)
* Idle Backlight On - 30mA @ 3.3V (130mA w/ Cam)
* Active Backlight Off - 10mA @ 3.3V (150mA w/ Cam)
* Active Backlight On - 40mA @ 3.3V (180mA w/ Cam)
* Dimensions
* Weight - 13g
* Length - 48mm
* Width - 38mm
* Height - 13mm
* Temperature Range
* Storage - -30°C to 80°C
* Operating - -20°C to 70°C

**Documents:**

* [LCD Shield Datasheet](https://cdn.sparkfun.com/assets/0/c/7/d/4/OpenMV_LCD_Shield.pdf)
* [Display Datasheet](https://cdn.sparkfun.com/assets/5/0/7/6/6/JD-T18003-T01.pdf)
* [Display Schematic](https://github.com/openmv/openmv-boards/blob/master/shields/lcd/lcd.pdf)
* [Display Driver Datasheet](https://cdn.sparkfun.com/assets/6/4/2/9/c/ST7735R.pdf)
* [LCD Shield Pinout](https://cdn.sparkfun.com/r/600-600/assets/d/3/4/2/c/lcd-pinout.png)
* [Github](https://github.com/openmv/openmv-boards/tree/master/shields/lcd)
* [OpenMV Resource Page](https://www.sparkfun.com/openmv)

**Videos**
