Audio Jack Breakout

SparkFunSKU: PL4-PRT-10588
filler

Prix:
Prix réduit$8.99

Description

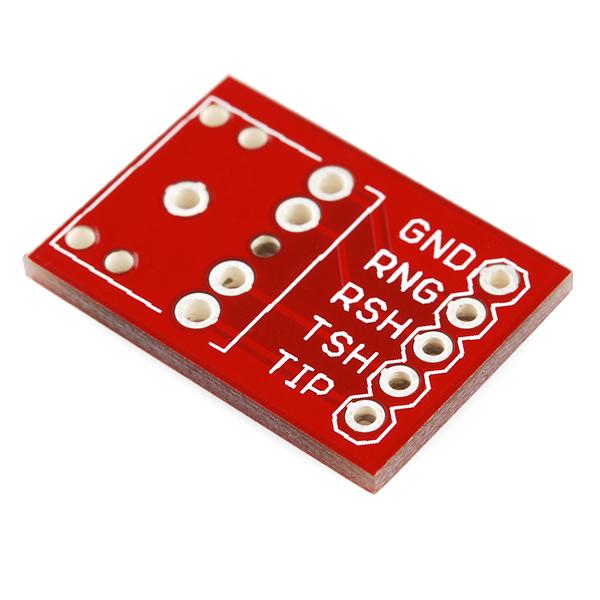

Simple breakout board for the 3.5mm audio jack. Use this breakout (shipped bare) to allow breadboard or SIP access to the super-common 3.5mm audio jack. All five pins are broken out.

****Note: ****You get the bare PCB only, check below for the Audio Jack.

**Documents:**

* [Schematic](https://cdn.sparkfun.com/datasheets/Prototyping/SparkFun_Audio_Jack_Breakout.pdf)
* [Eagle Files](https://cdn.sparkfun.com/datasheets/Prototyping/SparkFun_Audio_Jack_Breakout.zip)
* [GitHub](https://github.com/sparkfun/Audio_Jack_Breakout/tree/V_1.2)
