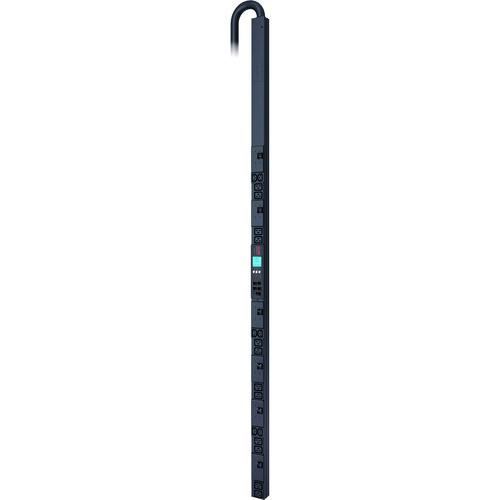

Schneider Electric APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 - Metered - 6 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - 17.30 kW - Rack-mountable

Schneider ElectricSKU: PL5-AP8866-97077R-0731304289906-EN
filler

Prix:
Prix réduit$3,131.99

Description

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 - Metered - 6 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - 17.30 kW - Rack-mountable

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Management

    Protocols:

    • SNMP
    • Telnet
    • Web
Limited Warranty 2 Year
Input Voltage 230 V AC
Output Voltage 208 V AC
Power Rating (VA) 17.30 kVA
Additional Information

Input Connections: IEC 309 60A 3P+PE

Package Contents
  • Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Serial Configuration Cable
Certifications & Standards
    • cUL
    • EN 55022 Class A
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • FCC Part 15 Class A
    • ICES-003
    • UL
    • VCCI Class A
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
Protection Type Overload Protection
Receptacle Type IEC 60320 C19
IEC 60320 C13
PDU Type Metered
Receptacle Detail 6 x IEC 60320 C13
12 x IEC 60320 C19
Product Type PDU
Manufacturer Part Number AP8866
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
Product Line Metered Rack
Brand Name APC by Schneider Electric
Weight (Approximate) 9.50 kg
Color Black
Mount Type Rack-mountable
Height 72.01" (1829 mm)
Width 2.20" (56 mm)
Depth 2.01" (51 mm)
Number of Cord/Cable 1
