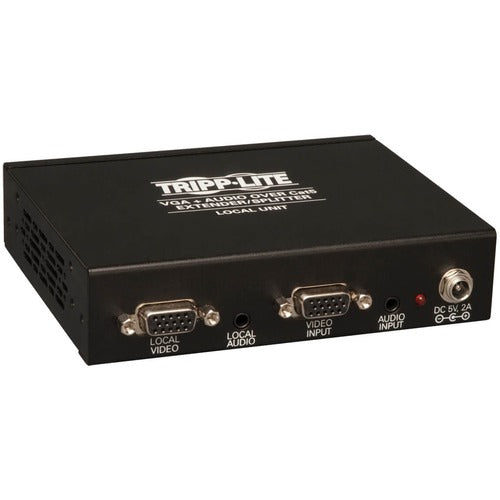

Tripp Lite 4 Port Extender/Splitter Local (Transmitter) Unit - 1 Input Device - 4 Output Device - 1000 ft (304800 mm) Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - T

Tripp LiteSKU: PL5-B132-004A-2-6596CH-0037332178435-EN
filler

Prix:
Prix réduit$355.99

Description

Tripp Lite 4 Port Extender/Splitter Local (Transmitter) Unit - 1 Input Device - 4 Output Device - 1000 ft (304800 mm) Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant

Tripp Lite's B132-004A-2 allows you to split a single VGA and Audio signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. Support for video resolutions up to 1920 x 1440 (60Hz). A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

  • Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
  • Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together
  • A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
  • Support for video resolutions up to 1920 x 1440 (60Hz)
  • Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • EDID copy feature ensures optimal display compatibility
  • The range and number of monitors can be further expanded by adding B132-110A repeater units
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location
  • A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted.
  • Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
  • Ideal for digital signage situations, such as retail, schools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Features
  • Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
  • EDID copy feature ensures optimal display compatibility
  • Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • Can further expand the range and number of monitors by adding B132-110A repeaters
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Maximum Video Resolution 1920 x 1440
Limited Warranty 1 Year
Twisted Pair Cable Standard Category 6
Media Type Supported Twisted Pair
Connectivity Technology Wired
Maximum Operating Distance 1000 ft (304800 mm)
Number of Output Devices Supported 4
Number of Input Devices Supported 1
Product Type Video Extender Transmitter
Manufacturer Part Number B132-004A-2
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite by Eaton
Product Model B132-004A-2
Product Name 4 Port Extender/Splitter Local (Transmitter) Unit
Brand Name Tripp Lite
Package Contents
  • 4 Port Extender/Splitter Local (Transmitter) Unit
  • 1 ft. VGA Daisychain Cable
  • Mounting Hardware
  • External Power Supply (Input: 100-240V)
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
For Country/Region United Kingdom
Europe
TAA Compliant Yes
Microphone Yes
Headphone Yes
Number of Network (RJ-45) Ports 4
Network (RJ-45) Yes
Number of VGA Outputs 1
VGA In Yes
VGA Out Yes
Number of VGA Inputs 1
Color Black
Form Factor Rack-mountable
Wall Mountable
Pole-mountable
Transmitter Height 1.20" (30.48 mm)
Transmitter Width 5.30" (134.62 mm)
Transmitter Depth 3.90" (99.06 mm)
Transmitter Weight (Approximate) 385.6 g
