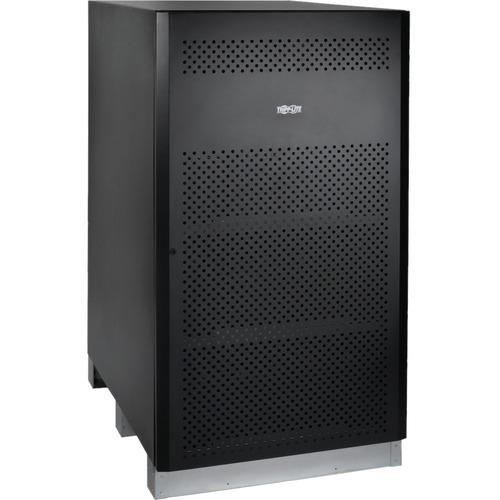

Tripp Lite BP480V65 External Battery Pack - 65000 mAh - 240 V DC - Sealed Lead Acid (SLA) - Sealed - 10 Year Maximum Battery Life

Economisez 14%
Tripp LiteSKU: PL5-BP480V65-786A4V-EN
filler

Prix:
Prix réduit$38,491.99 Prix normal$45,009.97

Description

Tripp Lite BP480V65 External Battery Pack - 65000 mAh - 240 V DC - Sealed Lead Acid (SLA) - Sealed - 10 Year Maximum Battery Life

Tripp Lite's BP480V65 External Battery Cabinet offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Includes internal disconnect for battery isolation.

Compatible UPS Systems: S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX and S3M200KX

Features

+/-240VDC Backup Battery Pack Gives Your Compatible UPS System Extended Runtime

The BP480V65 is compatible only with Tripp Lite's 3-phase S3M30KX-NIB, S3M40KX-NIB, S3M60KX, S3M80KX, S3M100KX, S3M120KX, S3M160KX, S3M200KX and other UPS systems that specify the use of this battery pack. The UPS battery pack consists of a steel battery cabinet and 40 sealed 65Ah lead acid batteries. Hardwire installation is safe and simple. Circuit breakers provide overcurrent protection. Internal disconnect for battery isolation is included.

Daisy-Chain Multiple Cabinets for Even Longer Extended-Run Operation

Multiple battery pack cabinets may be connected in parallel to provide the 3-phase UPS system with more runtime. Up to three external battery packs may be connected to the S3M30KX-NIB, S3M40KX-NIB, S3M60KX and S3M80KX. The S3M100KX, S3M120KX, S3M160KX and S3M200KX units can handle as many as seven BP480V65s connected in parallel.

One-Year Warranty

The BP480V65 is backed by a one-year warranty, ensuring reliability and performance.

Features
  • Extends runtime of compatible UPS systems using special +/-240VDC configuration
  • Black steel cabinet matches UPS systems to give your server room a consistent look
  • Requires hardwire installation; circuit breakers provide overcurrent protection
  • Multiple battery pack cabinets may be connected in parallel to increase runtime
  • 1-year limited warranty
Limited Warranty 1 Year
Package Contents
  • BP480V65 External Battery Pack
  • Cable for Jack, 32 in. (81.3 cm), 1/0 AWG
  • Attachment Hardware for Battery Cable
  • Owner's Manual
Compatibility
    Tripp Lite S3MX-Series 3-Phase UPS Systems:
    • S3M30KX-NIB
    • S3M40KX-NIB
    • S3M60KX
    • S3M80KX
    • S3M100KX
    • S3M120KX
    • S3M160KX
    • S3M200KX
Environmentally Friendly Yes
Environmental Certification RoHS
Product Type External Battery Pack
Manufacturer Part Number BP480V65
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model BP480V65
Product Name BP480V65 External Battery Pack
Brand Name Tripp Lite
Weight (Approximate) 957.40 kg
Height 59" (1498.60 mm)
Width 32.50" (825.50 mm)
Depth 44.70" (1135.38 mm)
Battery Chemistry Sealed Lead Acid (SLA)
Capacity 65000 mAh
Output Voltage 240 V DC
Battery Characteristics Sealed
Maximum Battery Life 10 Year
