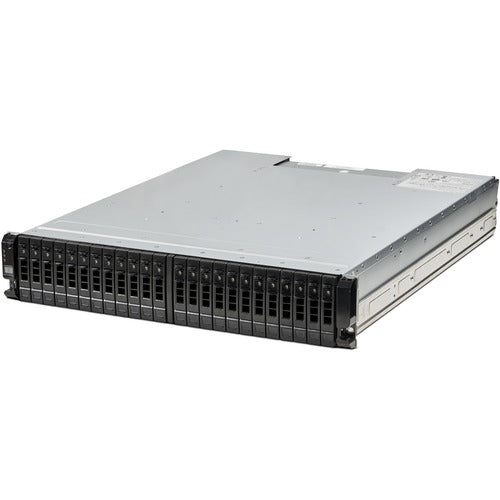

Seagate Exos X 2U24 SAN Storage System - 24 x HDD Supported - 57.60 TB Supported HDD Capacity - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 16 GB RAM DDR4 SDRAM - 2 x Near Line SAS (NL-SAS), 12Gb/s SAS Controller - RAID Supported 0, 1, 3
Seagate Exos X 2U24 SAN Storage System - 24 x HDD Supported - 57.60 TB Supported HDD Capacity - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 16 GB RAM DDR4 SDRAM - 2 x Near Line SAS (NL-SAS), 12Gb/s SAS Controller - RAID Supported 0, 1, 3
Sold by: Seagate
Seagate Exos X 2U24 SAN Storage System - 24 x HDD Supported - 57.60 TB Supported HDD Capacity - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 16 GB RAM DDR4 SDRAM - 2 x Near Line SAS (NL-SAS), 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10, 50 - 24 x Total Bays - 24 x 2.5" Bay - 8 x Total Slot(s) - Gigabit Ethernet - SFTP, SNMP, SSL, SSH, SMTP, HTTPS - 2U - Rack-mountable
Integrated. Efficient. Intelligent. | Exos X 2U24Seagate® Exos? X 2U24 is the datasphere's favorite entry-level solution for right-sized storage performance at an exceptional price point.
Key Advantages
Maximum Capacity and Consistent High Performance. Leverage both speed and performance at a budget-friendly price. This system enables the smallest business to the largest data center to efficiently deliver data to applications at 320K maximum IOPS in a hybrid configuration, the best price/performance system in its class on the market today. By seamlessly adapting from hybrid flash to all-hard drive configurations, this nimble system flexes as use cases evolve and capacity needs increase.
Cost-Optimized Architecture. This flexible solution is perfect for businesses with demanding streaming environments that require high read and write throughput, while still needing considerable storage space. Built to ensure space is used to its maximum potential, application access to data is virtually instantaneous, ensuring IT and end users can work efficiently
Easy to Set Up, Maintain, and Expand. All system components-the enclosure, the controller, the firmware, and the drives-are developed and optimized by our engineers to work together seamlessly. This reduces support calls and eliminates technical learning curves. Modular architecture makes components interchangeable between systems, and upgrades are simple due to common FRUs, PCMs, controllers, and software.
Get Data to Applications Fast and Protect Valuable Assets. This system is full of features that enable extreme cost efficiency and up to 99.999% data availability. Parallel architecture, multi-core processing, data replication, and fast streaming make access to data unfettered, while exclusive Seagate ADAPT data protection technology enables fast and efficient drive rebuilds that virtually eliminate system downtime.
Build In Security at the Foundation of the Data Life Cycle. Protect the most valuable business assets with Seagate Secure? cybersecurity features and intelligent firmware -such as SFTP, SED support, and administrator access controls-that provide builtin security measures for reliable and safe file access, transfer, and management.
- Expand a data center seamlessly with flexible hard drive and hybrid flash configuration options
- Efficiently manage hot and cold data with real-time data tiering feature option
- Deliver unfettered data access with dual redundant controllers capable of achieving up to 7GB/s sequential read, 5.5GB/s sequential write performance
- Rebuild drives faster than ever and reduce downtime with Seagate ADAPT data protection technology
- Opt for replication and snapshot features to meet critical enterprise requirements
| Ethernet Technology | Gigabit Ethernet |
| Drive Interface | 12Gb/s SAS |
| Near Line SAS (NL-SAS) |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 580 W |
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Bays | 24 |
| Number of Total Expansion Slots | 8 |
| Number of 2.5" Bays | 24 |
| RAID Levels | 0, 1, 3, 5, 6, 10, 50 |
| Controller Type | 12Gb/s SAS |
| Near Line SAS (NL-SAS) | |
| Number of Controllers | 2 |
| RAID Supported | Yes |
| Product Type | SAN Storage System |
| Manufacturer Part Number | D4525X000000DA |
| Manufacturer Website Address | http://www.seagate.com |
| Manufacturer | Seagate Technology |
| Product Name | Exos X 2U24 SAN Storage System |
| Product Line | Exos X |
| Product Series | 2U24 |
| Brand Name | Seagate |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| EU WEEE | |
| EU RoHS |
| Total Hard Drive Capacity Supported | 57.60 TB |
| Number of Hard Drives Supported | 24 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 0 |
| Protocols | SSH |
| SNMP | |
| SSL | |
| SMTP | |
| SFTP | |
| HTTPS |
| Weight (Approximate) | 17 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.46" (87.90 mm) |
| Width | 17.44" (443 mm) |
| Depth | 24.80" (630 mm) |
