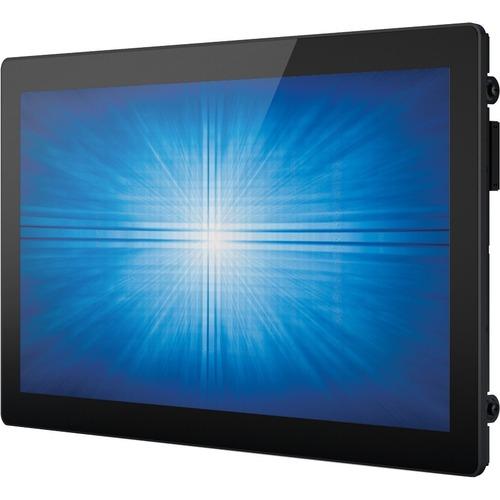

Elo 2094L 19.5" Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms - 20" (508 mm) Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 3,000:1 - 250 cd/m², 225

Elo 2094L 19.5" Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms - 20" (508 mm) Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 3,000:1 - 250 cd/m², 225

Prix habituel $861.99 CAD
Prix habituel $1,132.03 CAD Prix promotionnel $861.99 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Elo 2094L 19.5" Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms - 20" (508 mm) Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 3,000:1 - 250 cd/m², 225 cd/m² - LCD Panel, TouchPro PCAP - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - TÜV, RoHS, China RoHS, WEEE - 3 Year

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro? PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
Limited Warranty 3 Year
Operating Power Consumption 20 W
Standby Power Consumption 1.50 W
Off-Mode Power Consumption 500 mW
Energy Consumption per Year 29 kWh
Touchscreen Type TouchPro Projected Capacitive
Touchscreen Yes
Multi-touch Screen Yes
Number of Simultaneous Touchpoints 10
Contrast Ratio 3,000:1
Brightness 250 cd/m² - LCD Panel
225 cd/m² - TouchPro PCAP
Color Supported 16.7 Million Colors
Maximum Resolution 1920 x 1080
USB Yes
HDMI Yes
HDMI Version 1.3
VGA Yes
DisplayPort Yes
USB Standard USB 2.0
DisplayPort Version 1.1a
Product Type Open-frame LCD Touchscreen Monitor
Manufacturer Part Number E331214
Manufacturer Website Address http://www.elotouch.com
Packaged Quantity 1
Manufacturer Elo Touch Solutions, Inc
Product Model 2094L
Product Name 2094L 19.5" Open Frame Touchscreen (Rev B)
Brand Name Elo
Weight (Approximate) 4.70 kg
Color Black
Height 11.22" (284.99 mm)
Width 18.87" (479.30 mm)
Depth 1.59" (40.39 mm)
VESA Mount Compatible Yes
VESA Mount Standard 100 x 100
Package Contents
  • 2094L 19.5" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • Flush Mount Brackets w/Screws
  • EEI Label
  • Japan Class-B info sheet
Environmentally Friendly Yes
Environmental Certification WEEE
RoHS
TÜV
China RoHS
TAA Compliant No
Mean Time Between Failures (MTBF) 5.7 Year
Aspect Ratio 16:9
Response Time 20 ms
Features On-screen Display (OSD)
Mount Type Flush Mount
Viewable Screen Size 19.5"
Screen Mode Full HD
Horizontal Viewing Angle 178°
Vertical Viewing Angle 178°
Backlight Technology LED
Panel Technology Thin Film Transistor (TFT)
Horizontal Frequency 30 kHz to 82 kHz
Curved Screen No
Vertical Frequency 50 Hz to 75 Hz
Screen Size Class 20" (508 mm)
