StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25" bays, with support for SATA 6 Gbps - Trayless SATA Backplane - Hot Swap Bay - Backplane - Mobile Rack - SATA 6 Gbps - Key Lock - 70mm Fan

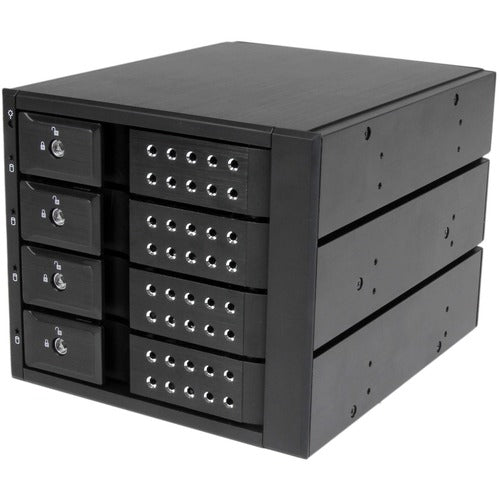

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Features
  • Solid aluminum construction
  • Key lock design
  • Built-in fan
  • 4 drive bay design
  • Installs in three 5.25" drive bays
  • Trayless design for easier hot swapping
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • Support for SAS revision I/II (3.0/6.0 Gbps)
  • Power and Activity LEDs for each drive
  • UL94 - V0 flammability rating
Wireless LAN No
Limited Warranty 2 Year
Number of Total Expansion Bays 4
Number of 3.5" Bays 4
Number of Hard Drives Supported 4
Number of Hard Drives Installed No
Host Interface Serial ATA/600
6Gb/s SAS
Drive Interface Serial Attached SCSI (SAS)
SATA/600
Product Type Drive Enclosure
Manufacturer Part Number HSB4SATSASBA
Manufacturer Website Address http://www.startech.com
Packaged Quantity 1
Manufacturer StarTech.com
Product Name 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
Brand Name StarTech.com
Package Contents
  • 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
  • 8 x Installation Screws
  • 2 x Drive bay Keys
  • 4 x SATA Cables
  • 1 x Instruction Manual
Certifications & Standards
    • FCC
    • CE
Country of Origin China
Environmentally Friendly Yes
Environmental Certification WEEE
REACH
RoHS
Material Aluminum
Weight (Approximate) 1.27 kg
Color Black
Form Factor Internal
Height 5" (127 mm)
Width 5.70" (144.78 mm)
Depth 7.80" (198.12 mm)
Compatible Drive Bay Width 5.25"
Cooling Fan Yes
