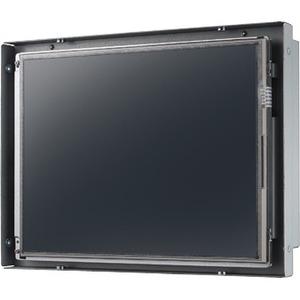

Advantech IDS31-104 10.4" Rugged Open-frame LCD Touchscreen Monitor - 4:3 - 35 ms - 10" (254 mm) Class - 5-wire ResistiveMulti-touch Screen - 800 x 600 - SVGA - Twisted nematic (TN) - 230 cd/m² - LED Backlight - DVI - HDMI - USB - VGA - DisplayPort - Black - RoHS
The IDS31-104 is a fully configurable, flexible display solution, able to be specified in a variety of screen brightness's, touch technologies and video inputs including displayport. The product can be specified in a number of compact mechanical constructions meeting all mounting demands, delivering complete flexibility in product design. All products have been designed to meet the demands of the industrial market and have leading in service performance characteristics guaranteed by 100% product burn-in and the service back up of the global Advantech corporation.- 10.4" LCD 4:3 screen panel with LED backlight for long service life
- Wide operating temperature 0 ~ +50° C for broad range of applications
- High brightness 230 cd/m2
- Mechanical formats : open frame with VESA standard mounting
- (Optional : closed frame)
- Configurable Options :
- Brightness 230 cd/m2
- Viewing angle 60°/60°/55°/45°
- Mechanical housing
- VGA,DVI
Operating Power Consumption | 7 W |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Touchscreen Type | 5-wire Resistive |
Multi-touch Screen | Yes |
Brightness | 230 cd/m² |
Maximum Resolution | 800 x 600 |
Native Contrast Ratio | 500:1 |
USB | Yes |
HDMI | Yes |
DVI | Yes |
VGA | Yes |
DisplayPort | Yes |
Product Type | Open-frame LCD Touchscreen Monitor |
Manufacturer Part Number | IDS31-104-523DVA1E |
Manufacturer Website Address | http://www.advantech.com |
Packaged Quantity | 1 |
Manufacturer | Advantech Co., Ltd |
Product Model | IDS31-104 |
Product Name | IDS31-104 Open Frame LCD Touchscreen Monitor |
Brand Name | Advantech |
Weight (Approximate) | 3.50 kg |
Color | Black |
Height | 7.64" (194 mm) |
Width | 10.31" (262 mm) |
Depth | 1.59" (40.30 mm) |
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 200 |
Rugged | Yes |
Aspect Ratio | 4:3 |
Response Time | 35 ms |
Features | On-screen Display (OSD) |
3H Surface Hardness | |
Anti-glare | |
Viewable Screen Size | 10.4" |
Screen Mode | SVGA |
Backlight Technology | LED |
Panel Technology | Twisted nematic (TN) |
Screen Size Class | 10" (254 mm) |
