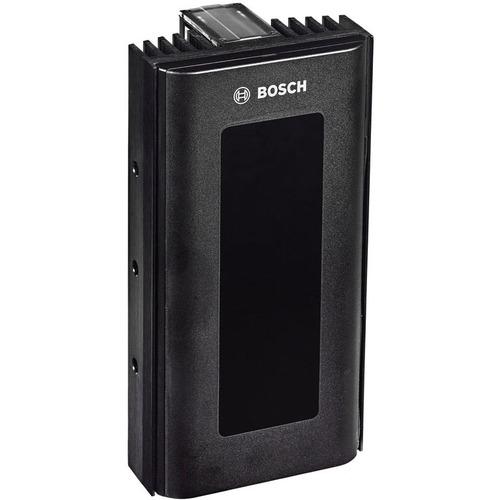

Bosch Illuminator, 940nm, Extra Range - Surface Mount, Adjustable Built-in Photocell, Adjustable Light Intensity, Interchangeable Lens, Self-cleaning Lens Coating, Night Vision, Electronic Protection - Surveillance, Indoor, Outdoor - Vandal Resistant - A

BoschSKU: PL5-IIR-50940-XR-5920DH-0800549815482-EN
filler

Prix:
Prix réduit$1,269.99

Description

Bosch Illuminator, 940nm, Extra Range - Surface Mount, Adjustable Built-in Photocell, Adjustable Light Intensity, Interchangeable Lens, Self-cleaning Lens Coating, Night Vision, Electronic Protection - Surveillance, Indoor, Outdoor - Vandal Resistant - Anodized Aluminum, Polycarbonate - Black

  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
TThe infrared illuminator provides covert or semi-covert lighting for extra long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.
Product Type Infrared Illuminator
Manufacturer Part Number IIR-50940-XR
Manufacturer Website Address http://www.bosch.com
Packaged Quantity 1
Manufacturer The Bosch Group
Product Name Illuminator, 940nm, Extra Range
Brand Name Bosch
Material Anodized Aluminum
Polycarbonate
Weight (Approximate) 1.84 kg
Color Black - Housing
Durability Vandal Resistant
Height 8.39" (213.11 mm)
Width 4.33" (109.98 mm)
Depth 2.99" (75.95 mm)
Additional Information

    Power

    • Power supply x 12 to 32 VDC or 24 VAC ±10%
    • Power consumption x 52 W

    Optical

    • Wavelength x 850 nm or 940 nm
    • IR control x Adjustable IR intensity (10% to 100%)
    • Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
    • Beam angles x 10°, 20°, 30°, 60°, 80°, and 95°

    Range 850 nm

    • Beam pattern diffuser x Achievable Distance* HFOV
    • 10º x 308 m (1010 ft) 54 m (177 ft)
    • 20° x 210 m (689 ft) 74 m (243 ft)
    • 30º x 154 m (505 ft) 83 m (271 ft)
    • 60° x 98 m (322 ft) 113 m (371 ft)
    • 80° x 70 m (230 ft) 117 m (385 ft)
    • 95º x 49 m (161 ft) 107 m (351 ft)

    Range 940 nm

    • Beam pattern diffuser x Achievable Distance* HFOV
    • 10º x 189 m (620 ft) 33 m (108 ft)
    • 20° x 112 m (367 ft) 39 m (130 ft)
    • 30º x 91 m (299 ft) 49 m (160 ft)
    • 60° x 56 m (184 ft) 65 m (212 ft)
    • 80° x 42 m (138 ft) 70 m (231 ft)
    • 95º x 28 m (92 ft) 61 m (201 ft)

    Mechanical

    • Housing x Robust anodized aluminum extrusion, black
    • Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
    • Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
    • Cable x 3 m (9 ft)
    • Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
    • Bracket weight x 0.2 kg (0.44 lbs)

    Environmental

    • Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
Application/Usage Indoor
Outdoor
Surveillance
Certifications & Standards IP66
Country of Origin Great Britain
Environmentally Friendly Yes
Device Supported Surveillance Camera
Features Electronic Protection
Self-cleaning Lens Coating
Adjustable Built-in Photocell
Night Vision
Surface Mount
Interchangeable Lens
Adjustable Light Intensity
