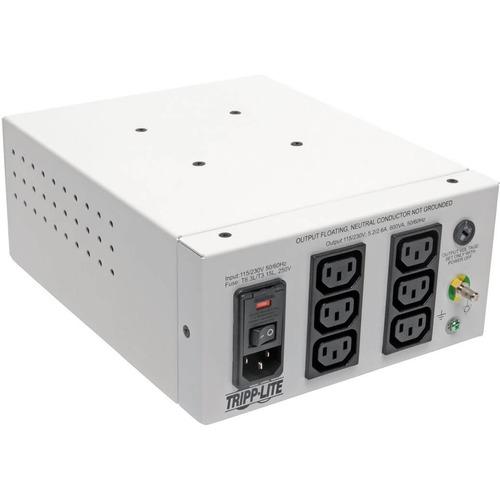

Tripp Lite Isolator IS600HGDV Isolation Transformer - 600 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output

Economisez 21%
Tripp LiteSKU: PL5-IS600HGDV-2452GD-EN
filler

Prix:
Prix réduit$1,618.99 Prix normal$2,061.74

Description

Tripp Lite Isolator IS600HGDV Isolation Transformer - 600 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output

The IS600HGDV Isolator® Series Dual-Voltage 115/230V 600W 50/60Hz Medical-Grade? Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.

An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS600HGDV and connected equipment to levels less than 50 microamps, while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions.

Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS600HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode.

Components connect to six C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial, medical, office, network or audio/video environment. Requires a C14-to-C13 AC input cord (sold separately).
Features
  • Protects sensitive equipment from EMI/RFI line noise and surges
  • Cumulative leakage current less than 50 µA
  • Automatically shuts down all outlets in case of overload
  • Offers complete isolation from input AC mains power
  • Ideal for use in any industrial, network or medical environment
Limited Warranty 2 Year
Power Rating 600 VA
Input Receptacle Type IEC 60320 C14
Output Receptacle Detail 6 x IEC 60320 C13
Output Receptacle Type IEC 60320 C13
Package Contents
  • Isolator IS600HGDV Isolation Transformer
  • 2 x Fuse Sets (115V and 230V Operation)
  • Input/Output Cable Selector Data Sheet
  • Owner's Manual
Certifications & Standards
    • ANSI/AAMI ES60601-1:2005+A2+A1
    • IEC60601-1 3RD EDITION +A1
    • cAN/CSA-C22.2 NO. 60601-1:14
    • CE
    • NOM
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Product Type Isolation Transformer
Manufacturer Part Number IS600HGDV
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model IS600HGDV
Product Name Isolator IS600HGDV Isolation Transformer
Product Line Isolator
Brand Name Tripp Lite
Input Voltage 230 V AC
120 V AC
Output Voltage 230 V AC
115 V AC
Maximum Line Current 6 A
Shipping Weight (Approximate) 10.08 kg
Weight (Approximate) 9.24 kg
Color White
Form Factor Cabinet
Height 4.33" (109.98 mm)
Width 7.87" (199.90 mm)
Depth 9.84" (249.94 mm)
Shipping Height 9.06" (230.12 mm)
Shipping Width 12.80" (325.12 mm)
Shipping Depth 14.57" (370.08 mm)
