Cyber Power CyberPower PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20 - Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Rack-mountable

Cyber Power CyberPower PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20 - Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Rack-mountable

Prix habituel $924.99 CAD
Prix habituel Prix promotionnel $924.99 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

CyberPower PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20 - Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Rack-mountable

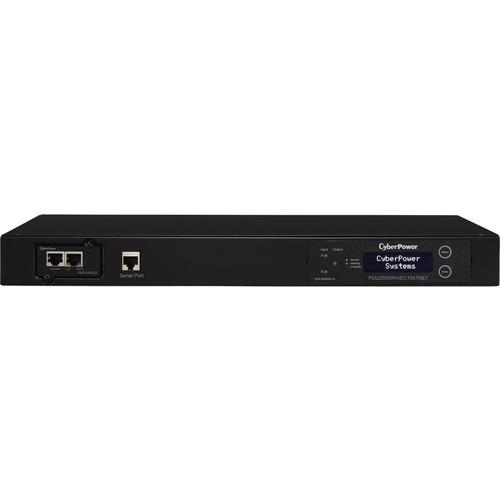

The CyberPower PDU20SWHVIEC10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Features
  • 200V - 240V 20A Switched ATS PDU with 8 IEC-320 C13 outlets, 2 IEC-320 C19 outlets and dual IEC-320 C20 20A high-voltage input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU
Management
    • Automatic Transfer Switch (ATS)
    • SNMP/HTTP
Limited Warranty 3 Year
Input Voltage 230 V AC
Output Voltage 230 V AC
Input Current 20 A
Additional Information
    • Phase: Single Phase
    • Frequency: 50/60 Hz
    • LCD Displays: Amperage, Voltage, KW, Network Information, and Hardware/LCD Firmware
    • LED Indicators: Input, Output Load, Tx/Rx, LINK, Outlets
    • Upgradeable Firmware: Yes - SNMP, HW, and LCD
Package Contents
  • PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
  • RMCARD203 SNMP Card
  • 1 x Mounting Brackets Set
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
Certifications & Standards
    • UL60950-1 Certified by ETL (USA)
    • CSA C22.2(Canada)
    • FCC Class A
Environmentally Friendly Yes
Environmental Certification RoHS
Product Type PDU
Manufacturer Part Number PDU20SWHVIEC10ATNET
Manufacturer Website Address http://www.cyberpowersystems.com
Manufacturer CyberPower Systems, Inc
Product Model PDU20SWHVIEC10ATNET
Product Name PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
Brand Name CyberPower
Weight (Approximate) 3.80 kg
Mount Type Rack-mountable
Rack Height 1U
Cord Length 10 ft
Height 1.75" (44.45 mm)
Width 17.05" (433.07 mm)
Depth 9.30" (236.22 mm)
Plug/Connector Type IEC 60320 C20
Receptacle Type IEC 60320 C13
IEC 60320 C19
PDU Type Switched
Receptacle Detail 8 x IEC 60320 C13
2 x IEC 60320 C19
Plug/Connector Detail 2 x IEC 60320 C20
