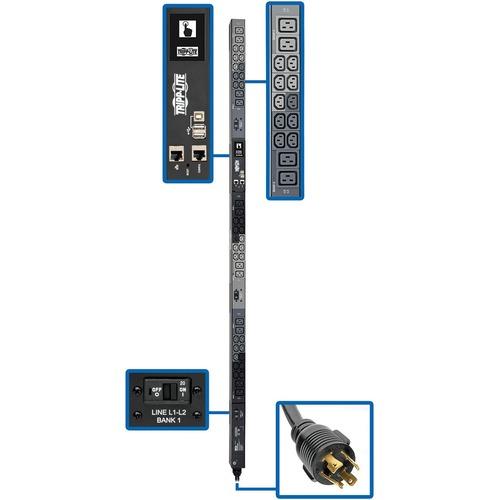

Tripp Lite PDU3EVN6H50BA 42-Outlet PDU - Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDU3EVN6H50BA 42-Outlet PDU - Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDU3EVN6H50BA 42-Outlet PDU - Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Features14.5kW 3-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers, server rooms and high-density network closets, the PDU3EVN6H50BA features 30 C13 and 12 C19 208/240V outlets in three breakered load banks, which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.
Color Touchscreen LCD Offers Important Data at a Glance
An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU, the LCD also displays status and environmental data, such as temperature and humidity.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rackmounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with Hubbell CS8365C 208/240V 3-phase input connects the PDU to a compatible AC power source, generator or protected UPS.
| Network (RJ-45) | Yes |
| Management |
|
| Limited Warranty | 2 Year |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| TAA Compliant | Yes |
| Product Type | PDU |
| Manufacturer Part Number | PDU3EVN6H50BA |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDU3EVN6H50BA |
| Product Name | PDU3EVN6H50BA 42-Outlet PDU |
| Brand Name | Tripp Lite |
| Weight (Approximate) | 5.83 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.17" (55.12 mm) |
| Depth | 2.52" (64.01 mm) |
| Mounting Orientation | Vertical |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 208 V AC | |
| 208 V AC | |
| 240 V AC | |
| Input Current | 35 A |
| Power Rating (Watt) | 14.50 kW |
| Protection Type | Overload Protection |
| Plug/Connector Type | Hubbell CS8365C |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Monitored |
| Receptacle Detail | 30 x IEC 60320 C13 |
| 12 x IEC 60320 C19 |
