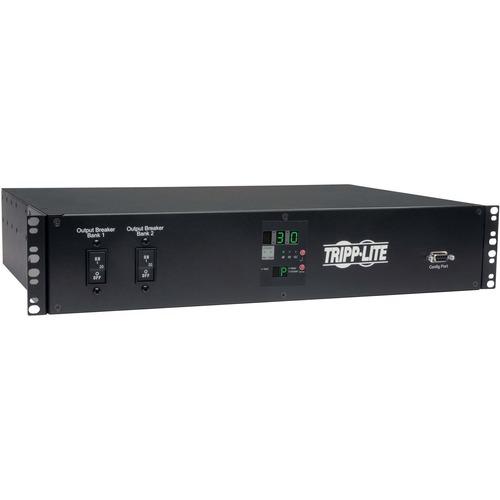

Tripp Lite Metered PDUMH30HVAT 19-Outlets PDU - NEMA L6-30P - 1 x NEMA L6-30R, 2 x IEC 60320 C19, 16 x IEC 60320 C13 - 230 V AC - 2U - Horizontal - Rack-mountable
Tripp Lite Metered PDUMH30HVAT 19-Outlets PDU - NEMA L6-30P - 1 x NEMA L6-30R, 2 x IEC 60320 C19, 16 x IEC 60320 C13 - 230 V AC - 2U - Horizontal - Rack-mountable
Tripp Lite Metered PDUMH30HVAT 19-Outlets PDU - NEMA L6-30P - 1 x NEMA L6-30R, 2 x IEC 60320 C19, 16 x IEC 60320 C13 - 230 V AC - 2U - Horizontal - Rack-mountable
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
- Single phase 30A 208V Auto Transfer Switch / ATS Metered PDU with Solid State Switching
- Enables redundant-power configurations for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 2U horizontal rackmount; 2 L6-30P inputs; 19 outlets (16 C13, 2 C19, 1 L6-30R)
| Limited Warranty | 2 Year |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| 240 V AC | |
| 240 V AC | |
| 208 V AC | |
| Input Voltage Range | 208 V AC - 240 V AC |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH30HVAT |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDUMH30HVAT |
| Product Name | Metered PDUMH30HVAT 19-Outlets PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite |
| Weight (Approximate) | 6.26 kg |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| Number of Cord/Cable | 2 |
| Mounting Orientation | Horizontal |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| NEMA L6-30R | |
| Receptacle Detail | 16 x IEC 60320 C13 |
| 1 x NEMA L6-30R | |
| 2 x IEC 60320 C19 | |
| Plug/Connector Detail | 2 x NEMA L6-30P |
