Tripp Lite PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU - Switched - IEC 60309 32A Blue (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kW - 1U/2U - Horizontal - Rack-mountable
Tripp Lite PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU - Switched - IEC 60309 32A Blue (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kW - 1U/2U - Horizontal - Rack-mountable
Tripp Lite PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU - Switched - IEC 60309 32A Blue (2P+E) - 16 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 7.40 kW - 1U/2U - Horizontal - Rack-mountable

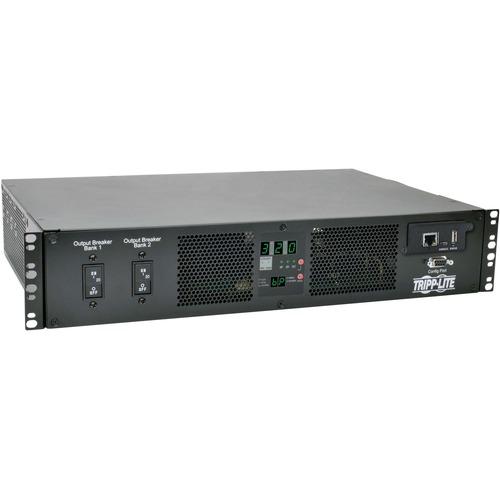

The PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets(16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.Dual 3-meter input cords with IEC309 32A Blue(2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state(TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy(+/- 1 percent). Supports user-programmable startup of outlets in any order or interval to ensure network items are turned on in the proper sequence and reliably discovered. Digital LED display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity with the optional ENVIROSENSE module(sold separately).
- Single-phase IEC309 32A Blue (2P+E) input and 230V output
- 16 C13 and 2 C19 switched outlets in 2 load banks
- Automatic transfer switching within 1-5 ms
- Ethernet network interface for remote access
- Digital LED display for real-time status monitoring
| Management |
|
| Limited Warranty | 2 Year |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 32 A |
| Power Rating (Watt) | 7.40 kW |
| Weight (Approximate) | 6.21 kg |
| Mount Type | Rack-mountable |
| Rack Height | 1U/2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| Mounting Orientation | Horizontal |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH32HVATNET |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDUMH32HVATNET |
| Product Name | PDUMH32HVATNET 7.4kW Single-Phase 230V ATS/Switched PDU |
| Product Series | Switched |
| Brand Name | Tripp Lite |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60309 32A Blue (2P+E) |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Switched |
| Receptacle Detail | 16 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| Plug/Connector Detail | 2 x IEC 60309 32A BLUE (2P+E) |
