Tripp Lite PDUMV20NETLX 1.9kW Single-Phase Switched PDU - Switched - NEMA L5-20P/5-20P - 24 x NEMA 5-15/20R - 120 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDUMV20NETLX 1.9kW Single-Phase Switched PDU - Switched - NEMA L5-20P/5-20P - 24 x NEMA 5-15/20R - 120 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDUMV20NETLX 1.9kW Single-Phase Switched PDU - Switched - NEMA L5-20P/5-20P - 24 x NEMA 5-15/20R - 120 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

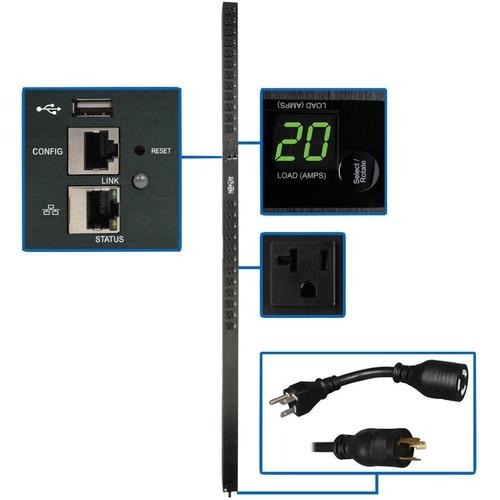

The PDUMV20NETLX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-20P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Features
Distributes Network-Grade AC Power
- 1.9kW 120V switched PDU with single-phase input
- Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
- NEMA L5-20P plug with 10 ft. cord connects to compatible AC power source
- Firmware upgrades support future product enhancements
24 Switched NEMA 5-15/20R Outlets Distribute AC Power
- Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
- Cord retention brackets prevent cables from becoming accidentally disconnected
Digital Ammeter
- Reports total PDU load in real time
- Supports IP-address self-ID
- Rotates 180° for easy reading at either angle
Built-In LX Platform Interface
- Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
- Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
- Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
- No Java required
Broad Communications Compatibility
- Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
- Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks
- Vertical PDU mounts using included toolless buttons or rack-mounting brackets
- Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1.9kW 120V single-phase switched 0U PDU
- 24 individually controllable NEMA 5-15/20R outlets
- Built-in LX Platform interface for 24/7 remote access
- Digital ammeter for on-site load monitoring in real time
- NEMA L5-20P input with 10 ft. AC power cord and 5-20P adapter
| Network (RJ-45) | Yes |
| Limited Warranty | 2 Year |
| Management |
|
| Remote Outlet Switching | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Power Rating (Watt) | 1.92 kW |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| TAA Compliant | Yes |
| Plug/Connector Type | NEMA L5-20P/5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R |
| Design | Modular |
| PDU Type | Switched |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV20NETLX |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDUMV20NETLX |
| Product Name | PDUMV20NETLX 1.9kW Single-Phase Switched PDU |
| Brand Name | Tripp Lite |
| Weight (Approximate) | 3.86 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.19" (55.63 mm) |
| Depth | 2.65" (67.31 mm) |
| Mounting Orientation | Vertical |
