Tripp Lite PDUMV30HVNETLX 24-Outlet PDU - Switched - NEMA L6-30P - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 5.80 kW - 0U - Vertical - Rack-mountable - TAA Compliant

Tripp LiteSKU: PL5-PDUMV30HVNETLX-4544EC-0037332202550-EN
filler

Prix:
Prix réduit$1,918.99

Description

Tripp Lite PDUMV30HVNETLX 24-Outlet PDU - Switched - NEMA L6-30P - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 5.80 kW - 0U - Vertical - Rack-mountable - TAA Compliant

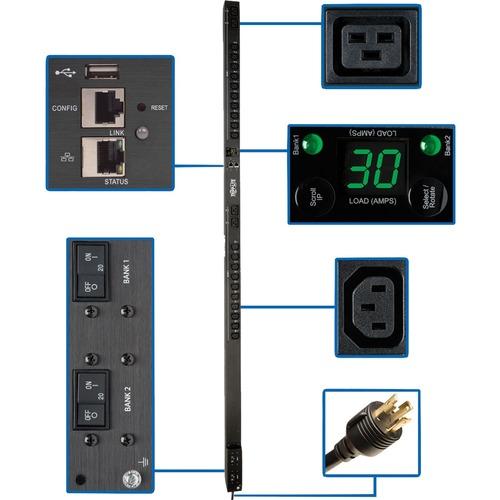

The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Features
  • 5/5.8kW 208/240V 30A switched PDU
  • 24 individually controllable outlets-20 C13, 4 C19
  • Built-in LX Platform interface for remote access
  • Digital ammeter for on-site load monitoring in real time
  • NEMA L6-30P input with 10 ft. AC power cord
Management
    Protocols:
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Limited Warranty 2 Year
Input Voltage 230 V AC
Output Voltage 230 V AC
Input Current 30 A
Power Rating (Watt) 5.80 kW
Package Contents
  • PDUMV30HVNETLX 24-Outlet PDU
  • Configuration Cable
  • 24 x Cable Ties
  • 2 x Cord Retention Brackets
  • Rack-mounting Hardware
  • Mounting Bracket Accessory
  • Owner's Manual
Country of Origin United States
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Product Type PDU
Manufacturer Part Number PDUMV30HVNETLX
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDUMV30HVNETLX
Product Name PDUMV30HVNETLX 24-Outlet PDU
Brand Name Tripp Lite
Weight (Approximate) 5.22 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.19" (55.63 mm)
Depth 2.65" (67.31 mm)
Mounting Orientation Vertical
Protection Type Overload Protection
Plug/Connector Type NEMA L6-30P
Phase Single Phase
Receptacle Type IEC 60320 C19
IEC 60320 C13
PDU Type Switched
Receptacle Detail 4 x IEC 60320 C19
20 x IEC 60320 C13
