Description

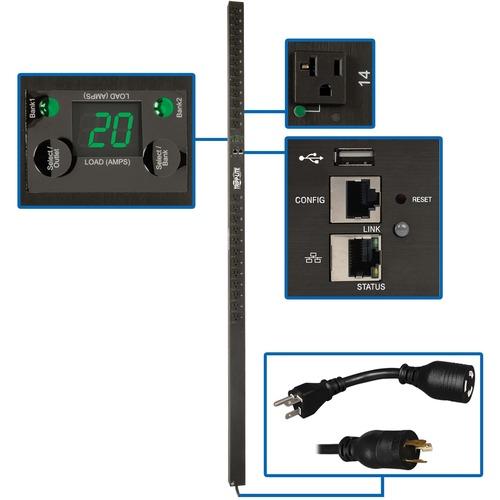

Tripp Lite 24-Outlets PDU - Monitored - NEMA L5-20P, NEMA 5-20P - 24 x NEMA 5-15/20R - 120 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
1.9kW Single-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for your small-to-mid-sized data center, computer room or high-density network closet, the PDUNVR20LX features 24 NEMA 5-15/20R 120V outlets, which distribute AC power to rack equipment. Advanced network power monitoring provides 1% billing-grade power consumption data for devices connected to each outlet.
Monitored Per-Outlet PDU Lets You Keep Track of Power Consumption in Real Time
Not only can you remotely monitor voltage and frequency, but the PDUNVR20LX also allows metering of input current, as well as output current per outlet. Outlets can be individually monitored to ensure proper load balance and prevent downtime. Monitoring each outlet allows you to study power consumption trends for each connected device. This helps you detect hardware problems and network traffic bottlenecks, as well as compare power usage among various devices.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, Telnet or SSH. Full 10/100/1000 Mbps auto-sensing enables optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities.
Auto Probe Allows Autonomous PDU Management
The LX Platform interface allows use of Tripp Lite's IP-based Auto Probe feature, which ensures continuous network uptime by communicating with other network devices. If communication is lost, Auto Probe autonomously performs one or more user-configurable actions that help you return the network devices to an operational state, including email notifications. The innovative Auto Probe is especially ideal for ATMs, retail kiosks, digital signage, edge computing and PC gaming centers.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the load for each outlet separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-foot cord with a NEMA L5-20P input and optional 5-20P adapter connects the PDU to a compatible AC power source, such as a generator or protected UPS.
TAA-Compliant for GSA Schedule Purchases
The PDUNVR20LX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Advanced remote capabilities include outlet-level current monitoring in real time
- 24 NEMA 5-15/20R 120V outlets distribute AC power to connected equipment
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- IP-based Auto Probe detects lost connectivity and notifies you immediately via email
- Digital ammeter for on-site load monitoring helps prevent power overloads
- 2-year limited warranty
Network (RJ-45) | Yes |
Management |
|
Limited Warranty | 2 Year |
Package Contents |
|
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
TAA Compliant | Yes |
Product Type | PDU |
Manufacturer Part Number | PDUNVR20LX |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Name | 24-Outlets PDU |
Brand Name | Tripp Lite |
Input Voltage | 120 V AC |
Output Voltage | 127 V AC |
120 V AC | |
100 V AC | |
Input Current | 20 A |
Power Rating (Watt) | 1.92 kW |
Plug/Connector Type | NEMA L5-20P |
NEMA 5-20P | |
Phase | Single Phase |
Receptacle Type | NEMA 5-15/20R |
PDU Type | Monitored |
Receptacle Detail | 24 x NEMA 5-15/20R |
Weight (Approximate) | 4.35 kg |
Mount Type | Rack-mountable |
Rack Height | 0U |
Height | 70" (1778 mm) |
Width | 2.20" (55.88 mm) |
Depth | 2.04" (51.82 mm) |
Mounting Orientation | Vertical |
