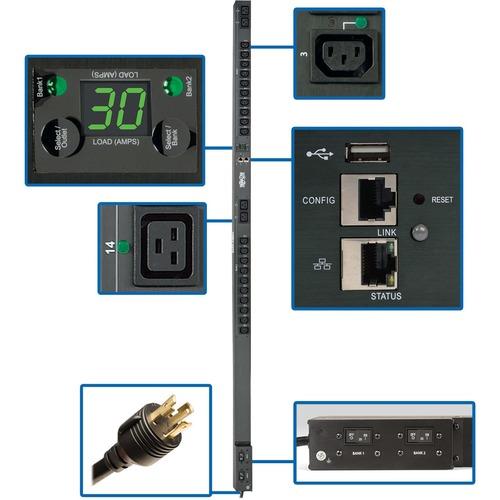

Tripp Lite PDUNVR30HVLX 24-Outlets PDU - Monitored - NEMA L6-30P - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant

Tripp LiteSKU: PL5-PDUNVR30HVLX-120VVL-0037332242280-EN
filler

Prix:
Prix réduit$2,213.99

Description

Tripp Lite PDUNVR30HVLX 24-Outlets PDU - Monitored - NEMA L6-30P - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 0U - Vertical/Toolless - Rack-mountable - TAA Compliant

5.8kW Single-Phase PDU Distributes and Monitors Network-Grade Power

This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for your small-to-mid-sized data center, computer room or high-density network closet, the PDUNVR30HVLX features 20 C13 and 4 C19 208/240V outlets in two breakered load banks, which distribute AC power to rack equipment. Advanced network power monitoring provides 1% billing-grade power consumption data for devices connected to each outlet.

Monitored Per-Outlet PDU Lets You Keep Track of Power Consumption in Real Time

Not only can you remotely monitor voltage and frequency, but the PDUNVR30HVLX also allows metering of input current, as well as output current per bank and per outlet. Banks can be individually monitored to ensure proper load balance and prevent downtime. Monitoring each outlet allows you to study power consumption trends for each connected device. This helps you detect hardware problems and network traffic bottlenecks, as well as compare power usage among various devices.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, Telnet or SSH. Full 10/100/1000 Mbps auto-sensing enables optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities.

Auto Probe Allows Autonomous PDU Management

The LX Platform interface allows use of Tripp Lite's IP-based Auto Probe feature, which ensures continuous network uptime by communicating with other network devices. If communication is lost, Auto Probe autonomously performs one or more user-configurable actions that help you return the network devices to an operational state, including email notifications. The innovative Auto Probe is especially ideal for ATMs, retail kiosks, digital signage, edge computing and PC gaming centers.

Digital Load Meter Helps Prevent Potentially Expensive Overloads

A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-foot cord with a NEMA L6-30P input connects the PDU to a compatible AC power source, such as a generator or protected UPS.

TAA-Compliant for GSA Schedule Purchases

The PDUNVR30HVLX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Features
  • Advanced remote capabilities include outlet-level current monitoring in real time
  • 20 C13 and 4 C19 208/240V outlets distribute AC power to connected equipment
  • Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
  • IP-based Auto Probe detects lost connectivity and notifies you immediately via email
  • Digital ammeter for on-site load monitoring helps prevent power overloads
  • 2-year limited warranty
Network (RJ-45) Yes
Management
    • SNMP
    • Telnet
    • SSH
Limited Warranty 2 Year
Package Contents
  • PDUNVR30HVLX 24-Outlets PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 20 x C13 Plug-Lock Inserts
  • 4 x C19 Plug-Lock Inserts
  • Rack-Mounting Hardware
  • PDUMVROTATEBRKT Mounting Bracket Accessory
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Input Voltage 230 V AC
Output Voltage 200 V AC
208 V AC
240 V AC
Input Current 30 A
Power Rating (Watt) 5.80 kW
Product Type PDU
Manufacturer Part Number PDUNVR30HVLX
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDUNVR30HVLX
Product Name PDUNVR30HVLX 24-Outlets PDU
Brand Name Tripp Lite
Weight (Approximate) 5.44 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.20" (55.88 mm)
Depth 2.60" (66.04 mm)
Mounting Orientation Vertical/Toolless
Protection Type Overload Protection
Plug/Connector Type NEMA L6-30P
Phase Single Phase
Receptacle Type IEC 60320 C13
IEC 60320 C19
PDU Type Monitored
Receptacle Detail 20 x IEC 60320 C13
4 x IEC 60320 C19
