StarTech.com 2 Port SATA 6 Gbps PCIe eSATA Controller Card - Add Two eSATA 3.0 (6Gbps) Ports for High Speed Access to Large External Storage Solutions - pci express esata - sata card - sata 6gb controller - pcie esata - sata III controller
StarTech.com 2 Port SATA 6 Gbps PCIe eSATA Controller Card - Add Two eSATA 3.0 (6Gbps) Ports for High Speed Access to Large External Storage Solutions - pci express esata - sata card - sata 6gb controller - pcie esata - sata III controller
StarTech.com 2 Port SATA 6 Gbps PCIe eSATA Controller Card - Add Two eSATA 3.0 (6Gbps) Ports for High Speed Access to Large External Storage Solutions - pci express esata - sata card - sata 6gb controller - pcie esata - sata III controller

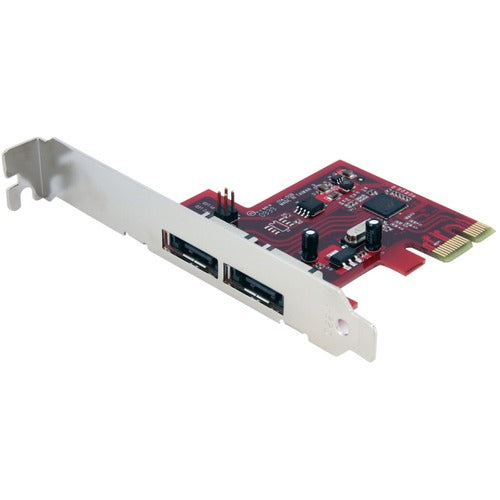

The PEXESAT32 2 Port PCI Express 6Gbps eSATA Controller Card offers simple connectivity between a host computer and eSATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving.
With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs.
The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single external SATA connection.
A dual profile solution, the eSATA controller card includes a low profile/half-height bracket for installation in slimline or small form factor computer cases.
- Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
- Port Multiplier FIS-based and Command-based switching supported
- Supports RAID 0 and 1 modes
- Uses existing SATA I/II connectors and cabling
- LED headers for HDD activity LED indicators
- Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
- Compliant with PCI Express 2.0 standards
- Ships with a full profile bracket install, low profile included
Limited Warranty | 2 Year |
Total Number of SATA Ports | 2 |
Number of SATA Ports (External) | 2 |
Host Interface | PCI Express x1 |
Controller Type | Serial ATA/600 |
Package Contents |
|
Platform Supported | PC |
Country of Origin | Taiwan |
Environmentally Friendly | Yes |
Environmental Certification | WEEE |
RoHS | |
REACH | |
TAA Compliant | Yes |
Product Type | SATA Controller |
Manufacturer Part Number | PEXESAT32 |
Manufacturer Website Address | http://www.startech.com |
Manufacturer | StarTech.com |
Product Name | 2 Port SATA 6 Gbps PCIe eSATA Controller Card |
Brand Name | StarTech.com |
Weight (Approximate) | 34 g |
Form Factor | Plug-in Card |
Length | 2.80" (71.12 mm) |
Height | 0.80" (20.32 mm) |
Width | 4.70" (119.38 mm) |
Card Height | Dual-profile |
