StarTech.com StarTech.com VGA Video Extender over CAT5 (ST121 Series) - Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling - vga over cat5 extender - vga extender over cat5 - vga over cat 5 extender - vga ext

StartechSKU: PL5-ST121UTP-480580-0065030791236
filler

Prix:
Prix réduit$257.99

Description

StarTech.com StarTech.com VGA Video Extender over CAT5 (ST121 Series) - Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling - vga over cat5 extender - vga extender over cat5 - vga over cat 5 extender - vga extender over cat 5 - VGA to Cat5 Extender

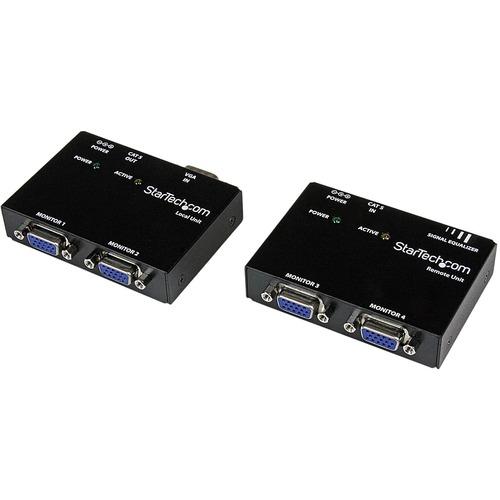

The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.

The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

Features
  • Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
  • Extends video cables by up to 500 ft. (150m)
  • Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
  • Included mounting brackets
Limited Warranty 2 Year
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Twisted Pair Cable Standard Category 5e
Media Type Supported Twisted Pair
Graphics Modes SXGA
Maximum Video Resolution 1280 x 1024
Connectivity Technology Wired
Maximum Operating Distance 500 ft (152400 mm)
Number of Output Devices Supported 4
Number of Input Devices Supported 1
Product Type Video Extender Transmitter/Receiver
Manufacturer Part Number ST121UTP
Manufacturer Website Address http://www.startech.com
Manufacturer StarTech.com
Product Name VGA Video Extender over CAT5 (ST121 Series)
Brand Name StarTech.com
Additional Information
    • Cat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure
    • Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment
Package Contents
  • VGA Video Extender over CAT5 (ST121 Series)
  • 1 x Mounting Bracket for Receiver (w/ screws)
  • 2 x Sets Rubber Feet
  • 2 x Power Adapter
  • 1 x Instruction Manual
Environmentally Friendly Yes
Environmental Certification REACH
RoHS
WEEE
TAA Compliant Yes
Transmitter Height 0.80" (20.32 mm)
Transmitter Width 3.30" (83.82 mm)
Transmitter Depth 2.40" (60.96 mm)
Receiver Height 0.80" (20.32 mm)
Receiver Width 3.30" (83.82 mm)
Receiver Depth 2.40" (60.96 mm)
Transmitter Weight (Approximate) 335 g
Receiver Weight (Approximate) 335 g
