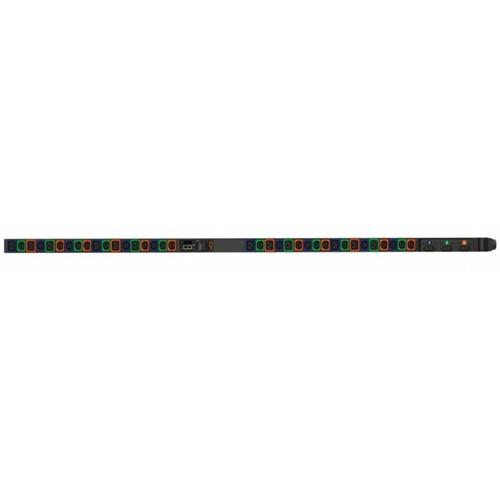

Vertiv Geist UPDU UI0036L rPDU - Monitored - Universal Input - 24 x U-Lock IEC 60320 C13, 12 x U-Lock IEC 60320 C19 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

Economisez 18%
VertivSKU: PL5-UI30006L-249A4X-EN
filler

Prix:
Prix réduit$1,805.99 Prix normal$2,202.83

Description

Geist UPDU UI0036L rPDU - Monitored - Universal Input - 24 x U-Lock IEC 60320 C13, 12 x U-Lock IEC 60320 C19 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

The Vertiv Geist UI30006L Universal Power Distribution Unit (Vertiv Geist UPDU) is a versatile rack power distribution unit (rPDU) with a universal input and a max power capacity of 11kW. This universal rPDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-48A and 120V-415V in both single phase and three phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Vertiv Geist UPDU in your network system. This model has 24 locking C13 and 12 locking C19 receptacles, all equipped with the Vertiv patented U-Lock to lessen accidental disconnections. The hot-swappable Interchangeable Monitoring Device (IMD) on this intelligent rack PDU not only has ports for unit-level remote power monitoring and environmental monitoring, but it also provides peace of mind that you can seamlessly update the unit's technology to adapt to your changing business needs.

Features
  • The rack PDU supports single phase or three phase power, 16A to 48A, 120V to 415V
  • Remotely monitor and manage the universal PDU through a serial or a web browser
  • Worry less about accidental disconnections with the U-Lock on the 24 C13 and 12 C19 receptacles
  • Rest assured your unit meets global compliance tests including - TAA Compliance, RoHS, China RoHS, UL, CE, and RCM
  • Receive an extra two years on top of the three-year warranty when you register the Vertiv Geist UPDU within 120 days of purchase
Network (RJ-45) Yes
Limited Warranty 5 Year
Management
    • DHCP
    • HTTP
    • HTTPS
    • IPv4
    • IPv6
    • LDAP
    • NTP
    • RADIUS
    • RSTP
    • SSH
    • SMTP
    • SNMP (v1/v2c/v3)
    • Syslog
    • TACACS+
Remote Outlet Switching No
Input Voltage 230 V AC
Input Current 48 A
Input Voltage Range 230 V AC - 415 V AC
Power Rating (Watt) 11 kW
Country of Origin United States
Environmentally Friendly Yes
Environmental Certification RoHS
China RoHS
TAA Compliant Yes
Energy Star No
Weight (Approximate) 9.98 kg
Length 70" (1778 mm)
Mount Type Rack-mountable
Rack Height 0U
Width 2" (50.80 mm)
Depth 2.25" (57.15 mm)
Mounting Orientation Vertical
Product Type PDU
Manufacturer Part Number UI30006L
Manufacturer Website Address http://www.vertiv.com/
Manufacturer Vertiv
Product Model DU03E4W1-36PNB7-1S02A9K00-S-A
Product Name UPDU UI0036L rPDU
Product Series rPDU
Brand Name Geist
Protection Type Overcurrent Protection
Double Pole
Plug/Connector Type Universal Input
Phase Three Phase
Receptacle Type U-Lock IEC 60320 C19
U-Lock IEC 60320 C13
PDU Type Monitored
Locking Receptacles IEC 60320 C19
IEC 60320 C13
Receptacle Detail 12 x U-Lock IEC 60320 C19
24 x U-Lock IEC 60320 C13
Plug/Connector Detail 1 x Universal Input
