USB-C Multiport Adapter, Dual HDMI Video, 4K 60Hz, 2-Port USB-A/USB-C 10Gbps Hub, 100W PD, GbE, SD, 22" (56cm) Cable, Travel Dock, Docking Station
USB-C Multiport Adapter, Dual HDMI Video, 4K 60Hz, 2-Port USB-A/USB-C 10Gbps Hub, 100W PD, GbE, SD, 22" (56cm) Cable, Travel Dock, Docking Station

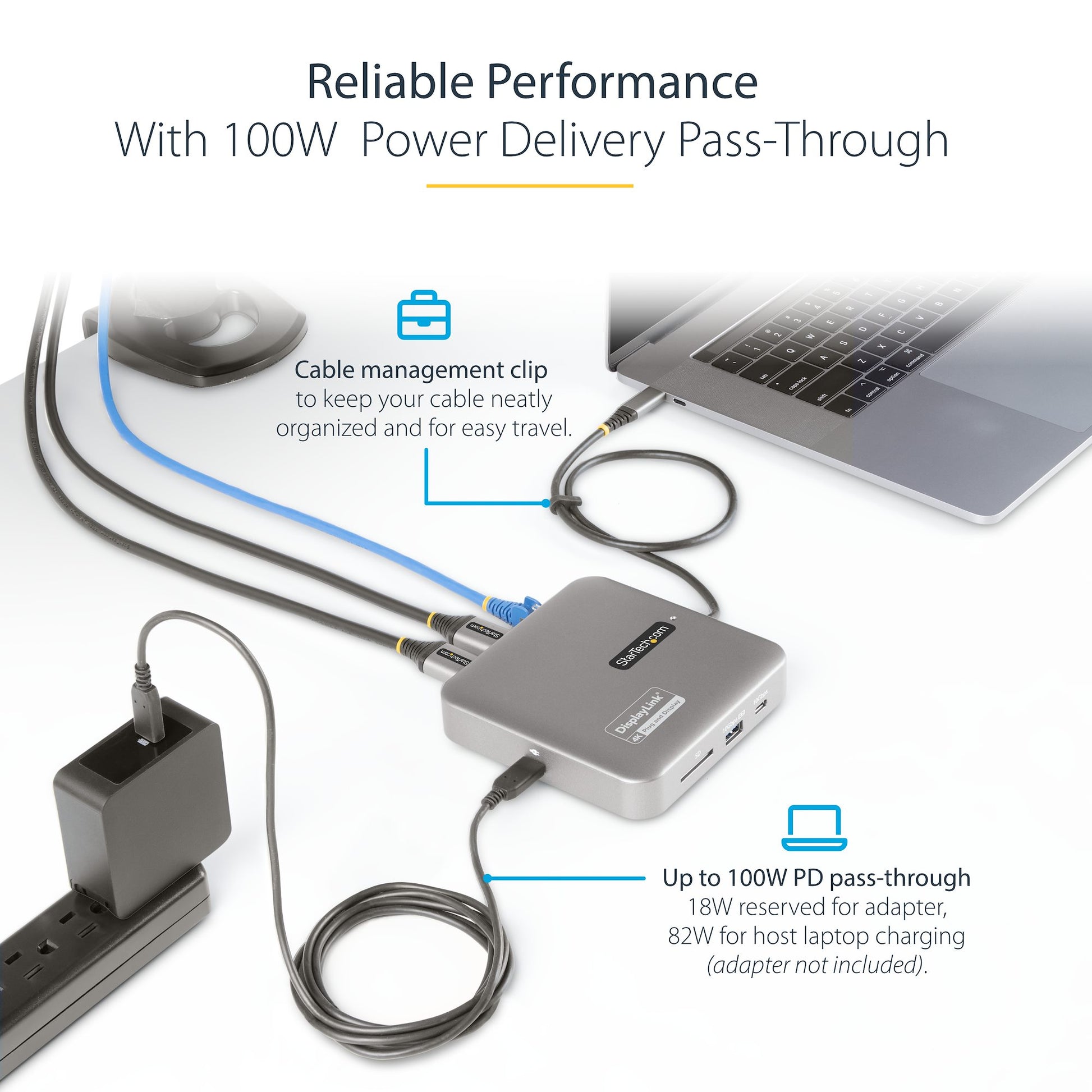

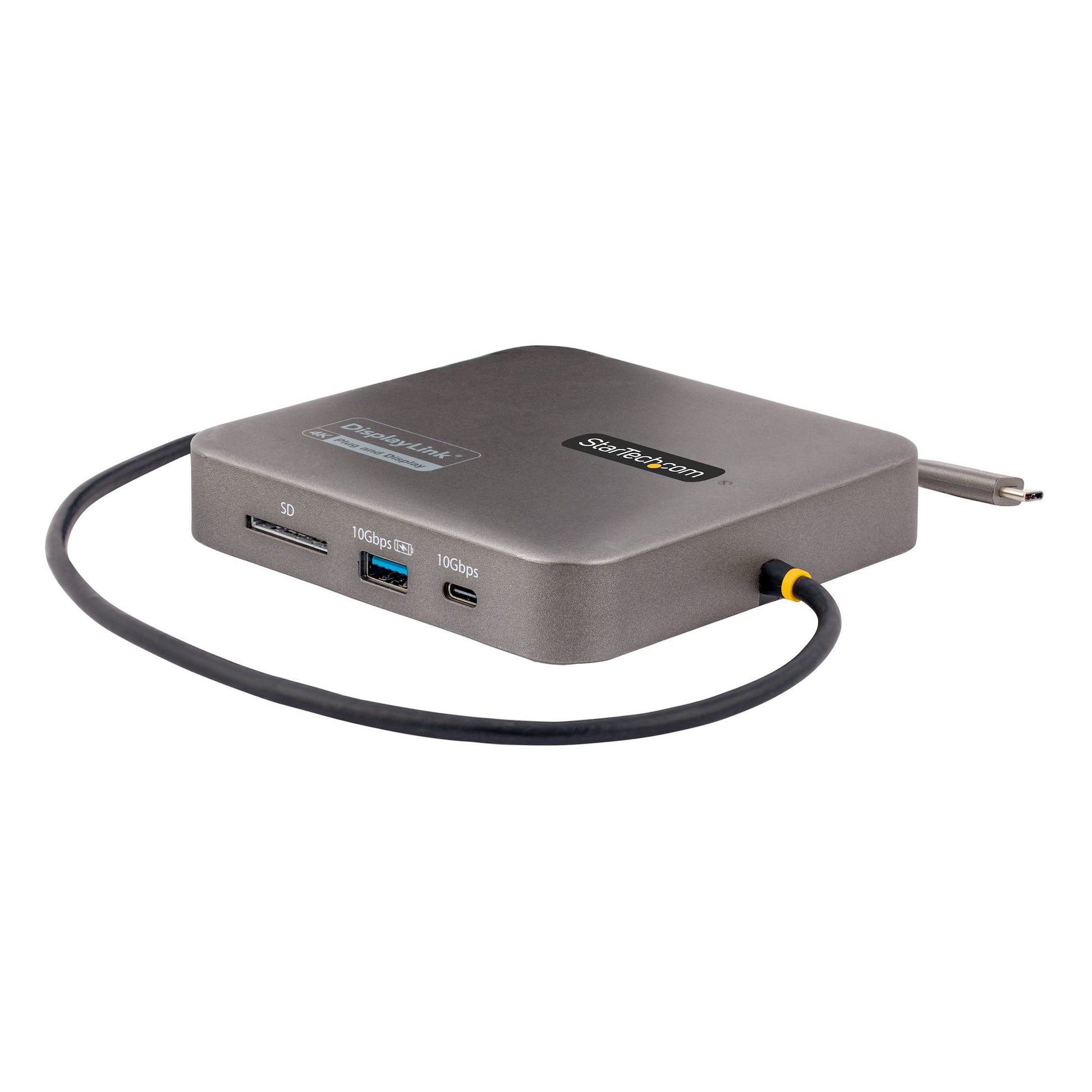

This USB-C Mini Dock / Multiport Adapter supports up to dual 4K 60Hz HDMI 2.0 converting your Dell XPS, MacBook or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features 2x HDMI video outputs, a 2-Port USB 3.2 Gen 2 (10 Gbps) Hub (1x USB-A with B.C 1.2 charging, and 1x USB-C), an SD card reader, and Gigabit Ethernet. The adapter connects to your host computer's USB-C, USB4, or Thunderbolt 3/4™ port. Charge your host laptop and any attached USB peripherals by connecting the host laptop's power supply to the dedicated USB Power Delivery (PD) 3.0 port. The Multiport Adapter features an extra-long attached 22-inch (55 cm) host cable - for an extended reach, to offer more set up flexibility.
Specifications:
- Warranty: 1 Years
- Package Quantity: 1
Connector(s):
-
External Ports:
- 2 - HDMI (19 pin)
- 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
- 1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)
- 1 - SD / MMC Slot
- 1 - RJ-45
- 1 - USB Type-C (24 pin) USB Power Delivery Only
-
Host Connectors:
- 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental:
- Operating Temperature: 0°C to 35°C (32°F to 95°F)
- Storage Temperature: -25°C to 65°C (-13°F to 149°F)
- Humidity: 0~95% RH (Non-condensing)
Hardware:
- 4K Support: Yes
- Fast-Charge Port(s): No
- Displays Supported: 2
- Interface: USB 3.2 Gen 2 - 10 Gbit/s
- Bus Type: USB-C
-
Industry Standards:
- HDMI 2.0
- USB 3.2 Gen 2 (10Gbps)
- USB Power Delivery Specification Rev. 3.0
-
Chipset ID:
- VIA - VL103R-Q4
- VIA - VL822-Q8
- ASMedia - ASM1541
- Genesys Logic - GL3232S
- Realtek - RTL8211F
- DisplayLink - DL-6950
Performance:
- Wake On Lan: Yes
- Maximum Data Transfer Rate: 10Gbps
- Maximum Digital Resolutions: Dual 4K (4096x2160) 60Hz
- UASP Support: Yes
- Compatible Networks: 10/100/1000 Mbps
- PXE: Yes
- Full Duplex Support: Yes
- Maximum Laptop Charging: 82 W
- MTBF (Mean Time Between Failures): 184,713 Hours
Physical Characteristics:
- Color: Space Gray
- Material: Plastic
- Cable Length: 21.7 in (55 cm)
-
Product Dimensions:
- Height: 1.0 in (2.5 cm)
- Length: 4.7 in (12.0 cm)
- Width: 4.7 in (12.0 cm)
- Weight of Product: 8.8 oz (250.0 g)
Power:
- Power Source: Bus Powered and Host USB-C Power Adapter
- Power Delivery: 100W
- Output Voltage: 5V DC
- Power Consumption (In Watts): 18W
Software Compatibility:
-
OS Compatibility:
- Windows® 7, 8, 8.1, 10, 11, 11 ARM
- macOS 10.11 to 10.12, 10.14 to 10.15, 11.0, 12.0, 13.0, 14.0, 15.0
- Android™
- Linux® Ubuntu 18.04, 20.04
- ChromeOS™
Special Notes / Requirements:
-
System and Cable Requirements:
- A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).
- Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
-
Note:
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.
- The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration, if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
- A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
- USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
What's in the Box:
- 1 - USB-C Multiport Adapter
- 1 - Quick-start guide
Packaging Information:
- Shipping Weight: 11.2 oz (316.0 g)
-
Package Dimensions:
- Height: 1.8 in (4.6 cm)
- Length: 6.7 in (17.1 cm)
- Width: 5.4 in (13.8 cm)
