USB C Video Adapter, USB C to HDMI VGA Multiport Adapter, 3.5mm Audio, 4K 60Hz HDR, 100W PD Pass-Through, Thunderbolt 3/4 Compatible - USB C Display Travel Adapter

Economisez 36%
StarTechSKU: PL54-122-USBC-HDMI-4K-VGA
filler

Prix:
Prix réduit$114.99 Prix normal$179.99

Description

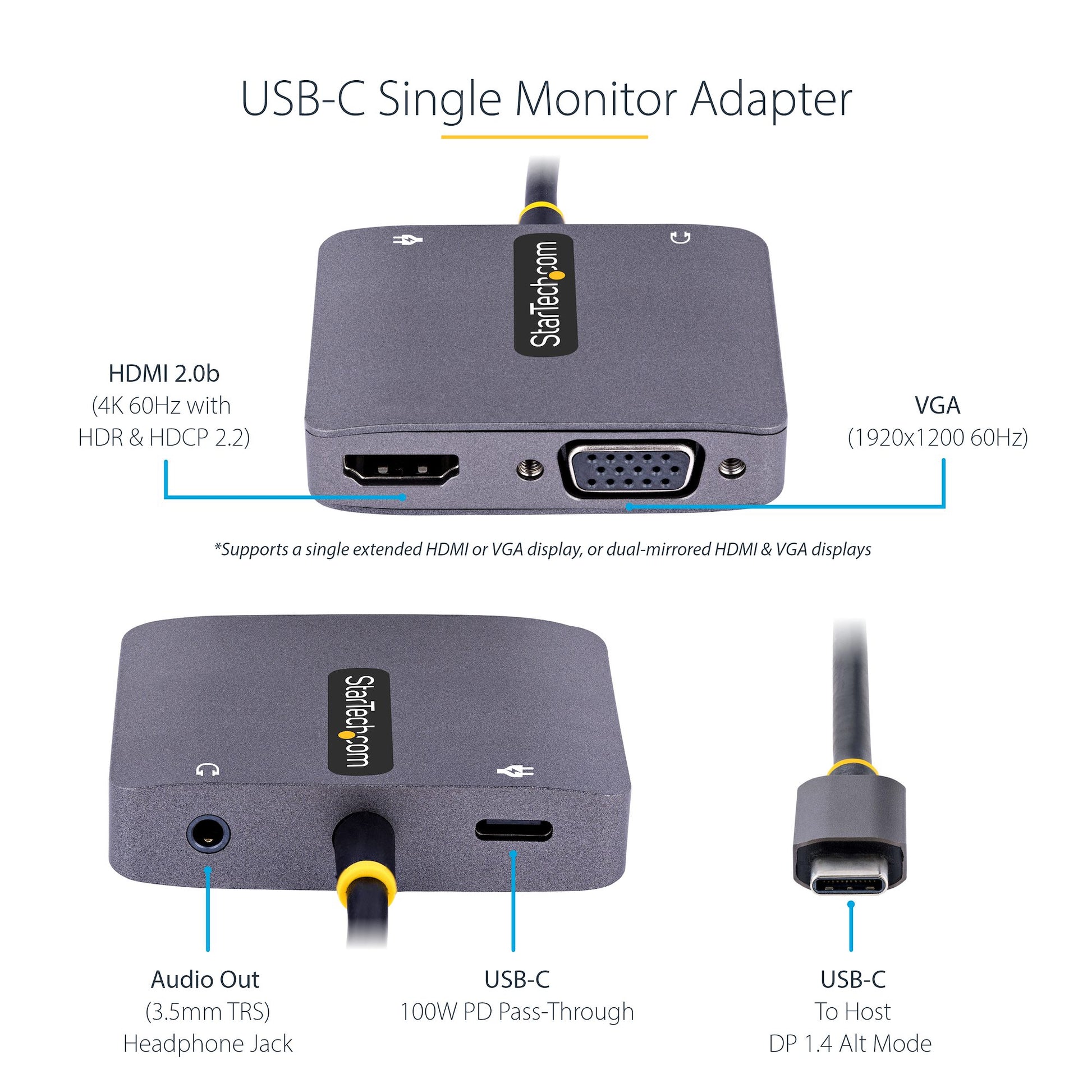

  • USB-C SINGLE MONITOR ADAPTER: USB-C DP Alt-mode to HDMI 2.0b (4K 60Hz, HDR, 7.1ch Audio, HDCP 2.2) or VGA (1920x1200 60Hz), USB-C PD pass through (100W), and 3.5mm Audio | This USB C Display Adapter supports mirrored HDMI+VGA video output at 1080p

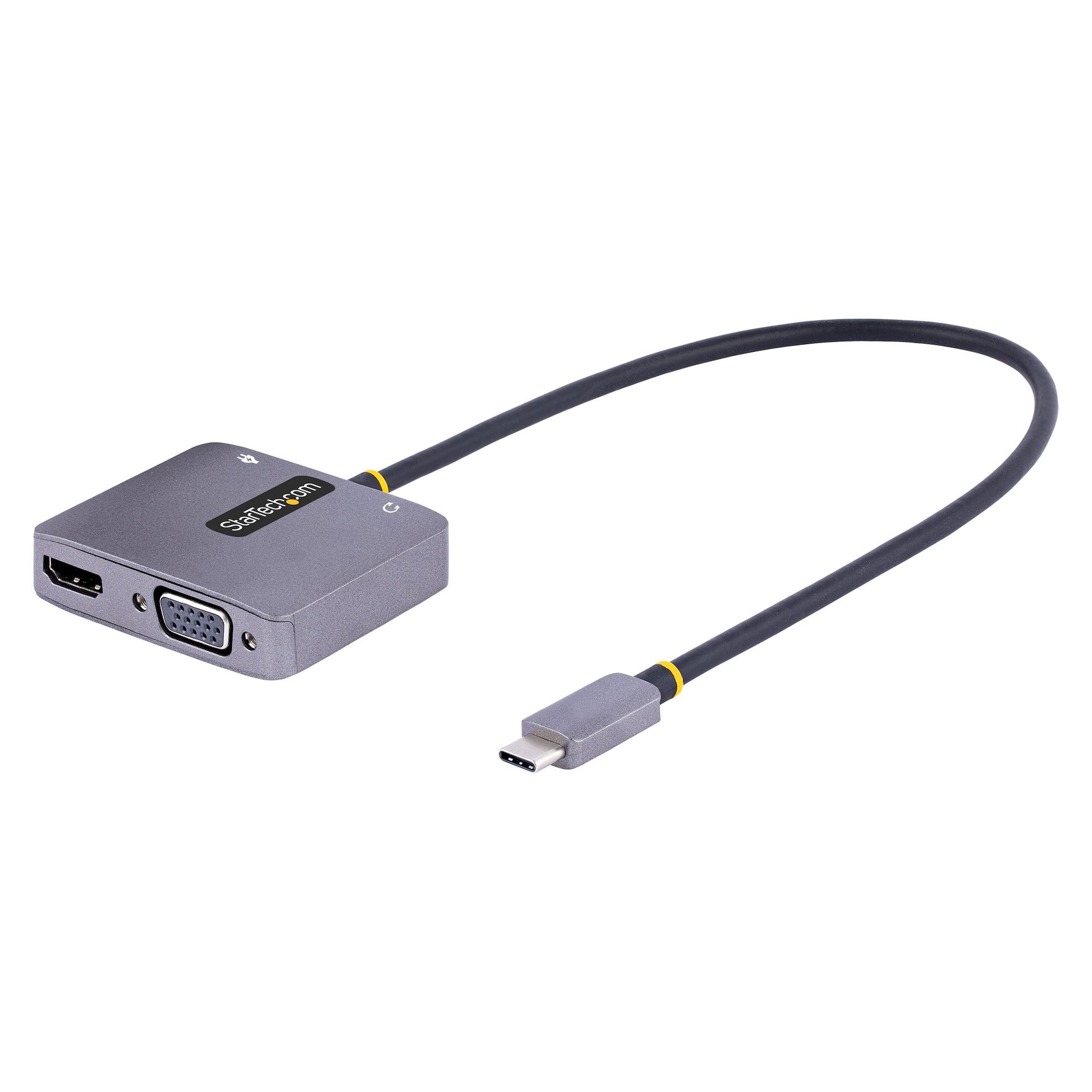

  • EXTRA LONG CABLE: This USB Type C Video Adapter features a 12" (30cm) attached cable, for extended reach and to reduce port/connector strain on devices/tablets such as Surface Pro 7 and up, iPad Pro, HP Elite x2 series, or laptops on riser stands
  • RELIABLE PERFORMANCE: Bus powered or external USB-C power adapter with up to 100W Power Delivery 3.0 pass through | The USB C Multiport Adapter enables full 100W charging for laptops | Built-in chipset reduces signal loss, providing a crystal clear image
  • COMPREHENSIVE HOST COMPATIBILITY: USB-C DP Alt-mode, Thunderbolt 3, and Thunderbolt 4 laptops from HP/DELL/Microsoft/Lenovo or Surface/Ultrabook/Chromebook/MacBook (Intel and M1 chip) | Windows, macOS, iPadOS, Linux, Chrome OS and Android
  • APPLICATIONS: Use the 3.5mm Audio output to add speakers, when connected to a VGA projector | Mirrored HDMI+VGA displays are ideal for presentations | Convenient for on-the-go use in office, home, and business environments

    USB-C to HDMI and VGA Adapter - Product Specifications

    Warranty:

    • 1 Years

    Connector(s):

    • Connector A:
      • 1 x USB-C (24 pin) DisplayPort Alt Mode
      • 1 x USB Type-C (24 pin) USB Power Delivery Only
    • Connector B:
      • 1 x HDMI (19 pin)
      • 1 x 15 pin High-Density D-Sub (VGA) Female
      • 1 x 3.5mm Stereo Female (3 pos)

    Environmental Conditions:

    • Operating Temperature: 0°C to 45°C (32°F to 113°F)
    • Storage Temperature: -10°C to 70°C (14°F to 158°F)
    • Humidity: 10% - 85% RH

    Hardware Details:

    • Active or Passive Adapter: Active
    • AV Input: USB-C
    • AV Output: VGA, HDMI
    • Chipset ID: VIA/VLI - VL103-Q4, ITE - IT6564FN

    Packaging Information:

    • Package Height: 1.3 in (3.3 cm)
    • Package Length: 6.9 in (17.4 cm)
    • Shipping (Package) Weight: 3.2 oz (90.0 g)
    • Package Width: 5.8 in (14.7 cm)
    • Package Quantity: 1

    Performance Features:

    • Video Revision: HDMI 2.0b
    • Maximum Analog Resolutions: 1920 x 1200 @ 60 Hz (VGA)
    • Maximum Digital Resolutions: 3840 x 2160 @ 60 Hz (HDMI)
    • Supported Resolutions:
      • Maximum HDMI Output: 3840 x 2160 @ 60Hz
      • Maximum VGA Output: 1920 x 1200 @ 60Hz
      • Lower resolutions and refresh rates are also supported
    • Wide Screen Supported: Yes

    Audio Specifications:

    • HDMI: 7.1 Channel Audio
    • Analog Stereo: 2 Channel Audio

    General Specifications:

    • Maximum Cable Distance to HDMI Display: 7m (22.9ft)
    • Maximum Cable Distance to VGA Display: 30m (98.4ft)

    Physical Characteristics:

    • Color: Gray
    • Product Height: 0.6 in (1.4 cm)
    • Product Length: 1.8 in (4.5 cm)
    • Product Width: 2.4 in (6.0 cm)
    • Product Weight: 1.4 oz (41.0 g)

    Power Requirements:

    • Power Source: Bus Powered and Host USB-C Power Adapter

    Software Compatibility:

    • No Drivers or Software Required

    Special Notes:

    • This adapter does not support MST (Multi-Stream Transport) or dual-extended displays.
    • The 3.5mm audio output will not be active unless a display is connected to the product.

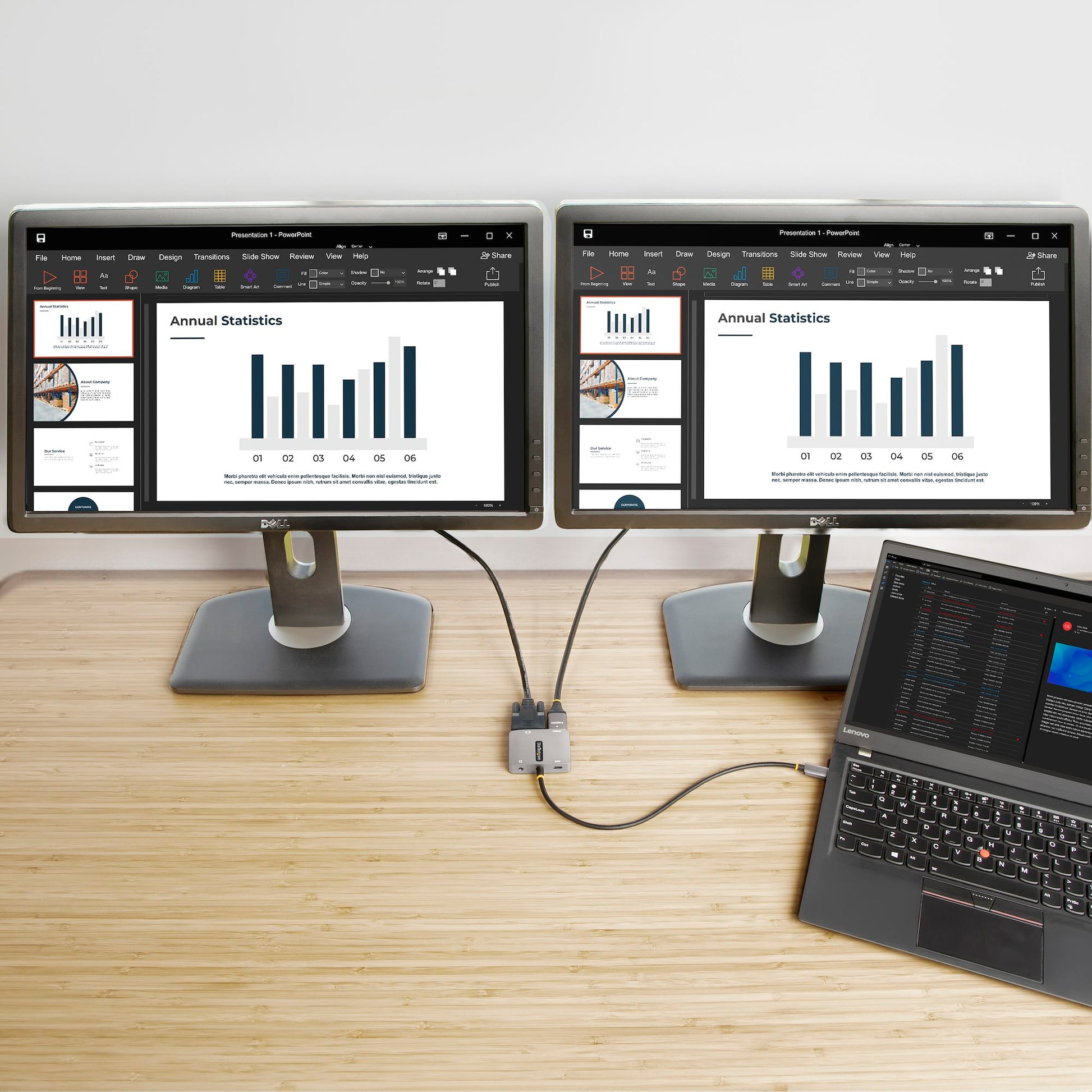

    • Support for dual-mirrored displays using VGA and HDMI.

    What’s Included in the Box:

    • 1 x USB-C to HDMI and VGA Adapter
